Single \ Dual \ Three Row Wire to Wire Housing Terminal Connector For Car Audio Black

Single \ Dual \ Three Row Wire to Wire Housing Terminal Connector For Car Audio Black

0.1 USD

add to cart

Detailed Product Description

Color: White, BlackGender: Male And Female

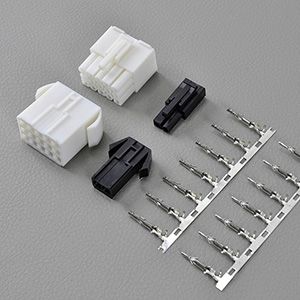

Alternate JST EL4.5 Wire to Wire Housing Terminal Connector For Car audio

Quick Detail:

Name

JST EL male and female connector

Application

Power, Wire-to-Wire, PCB

Connector

JST EL W to W serial

Circuits/ poles/ pins

2~15

Pitch

4.5mm

Certificate

ROHS, UL, HF

Descriptions:

- Compact type

- Easily insert and remove, smooth connection

- With durable ears lock

- Ensure stable contact

4.5mm pitch wire-to-wire version connectors, widely used in variety of circuits, from power supply circuits to signal circuits.

They can be alternative JST, Molex, JAE, AMP, TYCO, Hirose, Yeonho, Digi-key ect famous parts.

Specifications:

Housing

Alternative of JST EL receptacle housing ELR- (02~15) V (F) , plug housing ELP- (02~15) V

Crimp terminal

Pin contact SLM-01T-P-1.3E, socket contact SLF-01T-P-1.3E tin plated

Pitch Centerline

3.5mm

Circuits/ poles/ pins

2~15

Number of Rows

Single, dual, three

Current rating

3A AC, DC

Voltage rating

250V, AC, DC

Wire range

AWG22~28

Application:

Automotive: Car audio, alarm systems

Medical: Front panel displays, Patient monitor, measuring equipment, surgical systems, dental equipment.

Consumer: Scanner, LCD (liquid crystal display) , set top box, DVD players, Computer peripherals, printers

Commercial Vehicle: Sound systems

If you can't find the part number here, please contact us or send your drawing or part number.

Eshine can also refer you to a number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.

Type connector:

Wire Specs: AWG

UL Style:

Other end:

Assembly connector

Complete strip/ Tin plate:

Semi Strip/ Tin plate:

OEM orders are welcomed!
