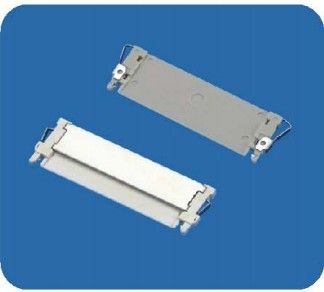

Flexible Printed Circuitry ZIF FPC Connectors With Lower Contact For Patient Monitor

Flexible Printed Circuitry ZIF FPC Connectors With Lower Contact For Patient Monitor

0.1 USD

add to cart

Detailed Product Description

Color: Beige, White


Flexible Printed Circuitry FPC Connectors With ZIF For Patient Monitors

Quick Detail:

Name

1.0mm FPC connector

Application

Patient Monitors, Power

Contact

Bottom , Lower

Circuits/ poles/ pins

2~60

Lock

ZIF

PCB mount

Right angle

Pitch/ space

1.0mm

Certificate

ROHS, UL, HF

Specifications:

Connector

Substitute FCI FPC/ FFC connector

PC board mounting direction

Side entry (right angle) , SMT

Lock type

None

Contact type

Bottom/ lower

Number of Rows

Single

Current rating

1A AC, DC

Voltage rating

30V, AC, DC

Wire range

AWG30~32

Descriptions:

1. Ultra low, thin

2. Various space options

3. Secure cable retention

4. Save cost: be substitute Molex Easy-on , TE AMP, FCI FPC parts

Eshine also offers a wide variety of ultra low-profile SMT FFC/ FPC connectors for tight packaging applications. Features include profile heights as low as 1.0mm, pull-type actuators, straight and right-angle versions.

Application:

Patient Monitors, Gaming Machines, Printers, LCD and TV panel

If you can't find the part number here, please contact us or send your drawing or part number.
