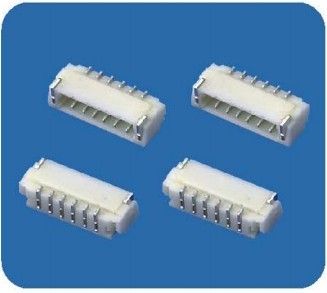

Single Row SM22SURS-TF Equivalent Board In Connectors For Security System 0.8MM

Single Row SM22SURS-TF Equivalent Board In Connectors For Security System 0.8MM

0.1 USD

add to cart

Detailed Product Description

Color: White, NaturalGender: Male
Type: Board-in Connector


SM22SURS-TF Equivalent Board In Connectors For Security Systems , 0.8MM Pitch

Quick Detail:

Name

BM (02-20) SURS-TF Conn

Application

Security Systems, PCB

Connector

JST SUR (02-22) SUR-36L

Circuits/ poles/ pins

2~22

Pitch

0.8mm

Certificate

ROHS, UL, HF

Descriptions:

Mate receptacle

Type: disconnectable, compact type, low profile type

With shrouded header

They can equal JST, Molex, JAE, AMP, TYCO, Join tech, Yeonho, Civilux ect famous parts.

Specifications:

Socket

Replace JST (02-22) SUR-32S. (02-22) SUR-36L

Header

Top entry BM (02-20) SURS-TF.

Side entry SM (02-22) SURS-TF, SMT

Pitch Centerline

0.8mm

Circuits/ poles/ pins

2~22

Number of Rows

Single

Current rating

0.5A AC, DC

Voltage rating

30V, AC, DC

Wire range

AWG30~32

Application:

Security systems, Car, ATM Machines, Inkjet, MFP/ LBP, Projector, RAILWAYPRODS, etc. industrial.

If you can't find the part number here, please contact Eshine sales or send your drawing or part number.

Eshine can also refer you to a number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.

Type connector:

Wire Specs: AWG

UL Style:

Other end:

Assembly connector

Completer strip/ Tin plate:

Semi Strip/ Tin plate:

OEM orders are welcomed!
