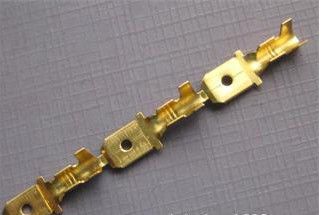

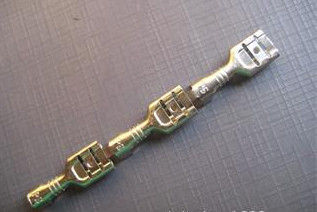

250 Tab On Terminal Chain Alternative Board In Connector For Light

250 Tab On Terminal Chain Alternative Board In Connector For Light

0.1 USD

add to cart

Detailed Product Description

Gender: FemaleFinish: Brass, Tin- Plated, Gold-plated, silver-plated

250 Tab On Terminal Chain Alternative Board In Connector For Light

Quick Detail:

Name

250 TAB-ON terminal connector

Application

Power

Connector

JST Molex solderless terminal

Temperature

High tempeature

Thickness

0.5mm

Certificate

ROHS, UL, CSA

Descriptions:

High temperature temp term terminal and splices provide excellent performace and are suitable ideal for use in extreme temperatures from 150 up to 650 °C.

Style: Butt splice, ring tongue

Available in ring, spade or splices, can attach wire directly to barrier strip or splice a stranded lead wire to the magnet wire.

They can replace Molex, JST, JAE, AMP, TYCO, Hirose, Yeonho, Civilux, Samtech ect famous parts.

Specifications:

Terminal

JST STO-21-250N, STO-61-250N, STO-81-250N, SFT-61-250N

Material

Brass, SN

Finish

Brass, SN plated, AU-plated, silver-plated

Thickness (mm)

0.5

Dimension (mm)

7.5x7.6x19.0

Insert Froce

4kgs

Wire range

AWG14~20

Application:

Industrial: Transformers, Electric space heaters, HVAC Controls

Industrial Automation: Commercial ovens and fryers, industrial kilns, motors, compressors

Automotive: Battery cable, construction equipment, electric vehicles, grounding lugs

Commercial Vehicle: Mining, RV and marine equipment

Industrial automation: Large motors, transformers, material handling

If you can't find the part number here, please contact us or send your drawing or part number.

Eshine can also refer you to a number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.

Type connector:

Wire Specs: AWG

UL Style:

Other end:

Assembly connector

Completer strip/ Tin plate:

Semi Strip/ Tin plate:

OEM orders are welcomed!
