Detailed Product Description
Connector: | 187250 | Alternative: | JST |
Wire: | UL1007, UL 1571 | Color: | Blue, Black |
Lenght: | 35mm To Any Lenght | Sleeve: | PE, PVC |

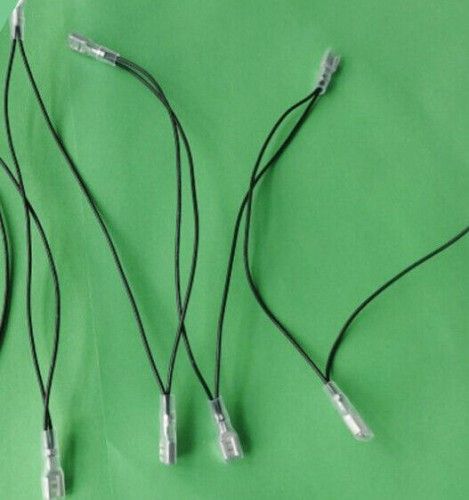

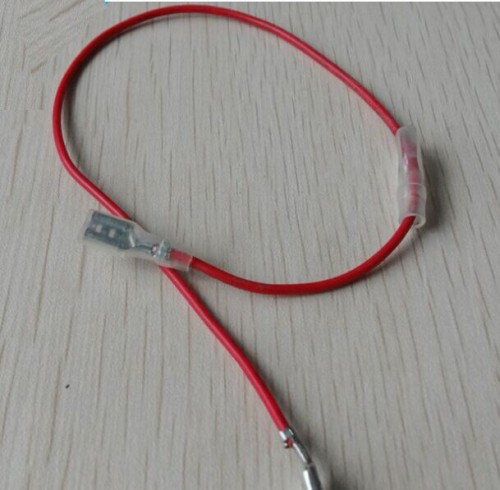

187 250 Crimp Wire Harness Cable Assembly Connector For HVAC Controls
Quick Detail:
Name | 187 wire harness | Application | Industrial, Industrial Automation |
Connector | JST 250187 | Circuits/ poles/ pins | 2~16 |
Wire | UL1571 UL1007 | Certificate | ROHS, UL, HF |
Specifications:
Connector | Alternate JST STO-21-250N, STO-61-250N, STO-81-250N, SFT-61-250N |
Wire range | AWG14~20 |
Material | Brass, SN, PE, PVC Sleeve |
Wire length | 35mm to Any length |
Wire color | Black, Red or any color |
Application:
Industrial: HVAC Controls, Transformers, Electric space heaters.
Industrial Automation: Commercial ovens and fryers, industrial kilns, motors, compressors
Descriptions:
- With Sleeve ensure reliable contact.
- Design flexibility.
-100% open-short & mis wire test
- Conductor Resistance: 5ω max.
- Insulation Resistance: 300V DC/ 10Mω Min.
Eshine can also refer you to a number of excellent harness assembly suppliers for your more specialized needs. Just advise info below or send your diagram.
Custom wire harnesses cable assemblies are welcome!
