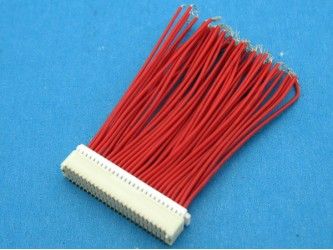

Rohs UL 20Pins Wire Harness Assemblies For Computer PCBA Double Rows

Rohs UL 20Pins Wire Harness Assemblies For Computer PCBA Double Rows

0.1 USD

add to cart

Detailed Product Description


Rohs UL 20Pins Wire Harness Assemblies For Computer PCBA Double Rows

Quick Detail:

Name

SHDR wire harness

Application

wire to board

Connector

JST / TYCO/ AMP

Circuits/ poles/ pins

2~30

Wire

UL1571 20AWG 400mm

Certificate

ROHS, UL, HF

Specifications:

Connector

Equivalent JST molex 501330-2000, SHR-20V-S , TYCO1470364-5, SHDR-20V-S-B, SHR- (02~20) -S-B, SHR- (02~15) -S

Pitch Centerline

1.0mm

Rows

Single

Wire length

50mm to Any length

Wire color

Grey, Black, Red, Blue, White, Yellow, Brown, Green, Orange

Application:

Computer, LVDS harness, PCBA, Medical equipment, LCD panels. Fingerprint machine. Notebook PC, PAD, 3D printer.UPS (Uninterruptable Power Supply) ,Multi Media Equipment, Traffic lightsm, etc. industrial.

Descriptions:

- Small design, space savings, High-density

- Mating guidance
- Design flexibility

- Twist wire or flat wire option.

Eshine offers high-end harness designs specializing in high-signal, high-density and high-speed applications for fully integrated solutions.

Welcomed to send your datasheet / diagram/ photo or just advise detailed specification.

OEM orders are welcomed!
