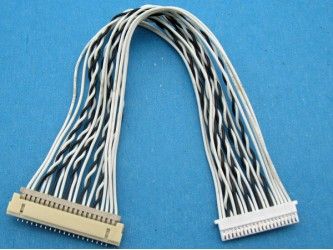

LCD Wire Harness Cable Assemblies With Equivalent DF14 And JST 1MM Connector

LCD Wire Harness Cable Assemblies With Equivalent DF14 And JST 1MM Connector

0.1 USD

add to cart

Detailed Product Description


LCD Wire Harness Cable Assemblies With Equivalent DF14 And JST 1.0MM Connectors

Quick Detail:

Name

LCD wire harness

Application

LCD panels

Connector

Molex / JST / DIGIKEY

Circuits/ poles/ pins

20

Wire

UL1571 28AWG 300mm

Certificate

ROHS, UL, HF

Specifications:

Connector

Equivalent DF14 And JST 1.0mm Connector and terminal

Pitch Centerline

1.25mm to 1.0mm

Rows

Single

Wire length

35mm to Any length

Wire color

Black, Red, Blue, White, Yellow, Brown, Green, Orange

Application:

LCD panels, Notebook PC, PAD. Computers, UPS (Uninterruptable Power Supply) ,Multi Media Equipment, Traffic lightsm, Medical equipment, Cell phone etc. industrial.

Descriptions:

- high-density
- Low profile
- Mating guidance
- Space savings
- Design flexibility

Eshine offers high-end harness designs specializing in high-signal, high-density and high-speed applications for fully integrated solutions.

Welcomed to send your drawing / diagram or just advise info below :

Type connector:

Wire Specs: AWG

UL Style:

Other end:

Assembly connector

Completer strip/ Tin plate:

Semi Strip/ Tin plate:

OEM orders are welcomed!
