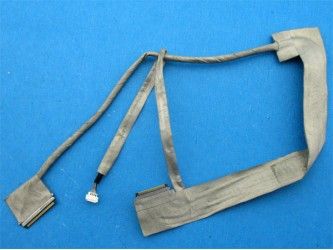

400mm Flat LVDS Wire Harness Assembly Molex Connector with 30 Pin

0.1 USD

Detailed Product Description

Quick Detail:

Name	LVDS cable	Application	LCD, PC, Monitor, Signal
Connector	IPEX and Molex	Circuits/ poles/ pins	30/40/50
Wire	UL1571 30AWG 300mm	Certificate	ROHS, UL, HF

Specifications:

Connector	Alternative IPEX 20453 and Molex
Pitch Centerline	0.5mm, 1.25mm
Rows	Single, dougle
Wire length	50mm to Any length
Wire color	Flat, grey, black

Application:

Consumer : LCD, Computers, 3D printer, Notebook PC, PAD. camcorders, portable navigation device, servers. LCD (liquid crystal display) ,Lap Tops, Monitor.Portable audio devices, tablet PCs

Automotive: GPS

Descriptions:

-High-density

-With Acetate cloth, round and flat type can be selected

-Ultra narrow width

-Save Space

-100% test short, open, misswire

LVDS cable harnesses are produced on our fully automatic, high speed, discrete wire which assure superior quality and competitive prices.

Welcomed to send your drawing / diagram / picture or just advise information below :

Type connector:

Wire Specs: AWG

UL Style:

Other end:

Assembly connector

Completer strip/ Tin plate:

Semi Strip/ Tin plate:

OEM orders are welcomed!
