High-density 20 Poles Wire Harness Cable Assembly For Patient Monitor

0.2 USD

Detailed Product Description

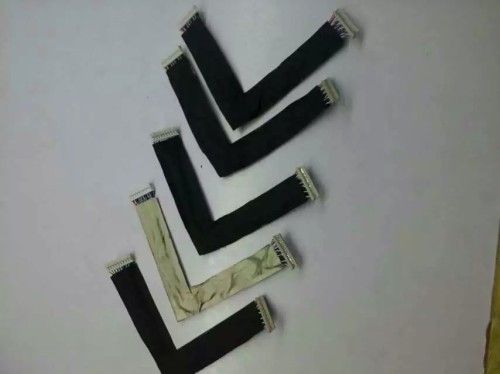

High-density 20 Poles Wire Harness Cable Assembly For Patient Monitor

Quick Detail:

Name	HRS DF19 PCB-Board-to-Wire connector	Application	Signal, Power Wire–to-Board
Connector	Socket, contact, pin header	Circuits/ poles/ pins	14/20/30
Terminal Pitch	1.0mm	Certificate	ROHS, UL, HF

Specifications:

Crimping Socket	Alternative DF19 receptacle socket, Beige
Crimp contact for socket	DF19 Tin-lead plated or gold plated.
Pin Header/ wafer	Beige, DF19 Horizontal, Right angle SMT
Pitch Centerline	1.0mm
Circuits/ poles/ pins	14/20/30
Number of Rows	Single
Current rating	1A AC, DC
Voltage rating	100V, AC, DC
Wire range	AWG28~32

Descriptions:

1.0mm Pitch Super low profile crimping connector, This is a connector special for right angle which has pursued a low

profile on the board.

They can be replacing Hirose, Molex, Digi-Key, TE AMP, TYCO JST, JAE, Yeonho, Civilux, Samtech ect famous parts.

-High-density

-With Acetate cloth

-Ultra narrow width

-Save Space

-100% test short, open, misswire

LVDS cable harnesses are produced on our fully automatic, high speed, discrete wire which assure superior quality and competitive prices.

Diagnostic equipment

Patient Monitor

Hubs

Power supplies and distribution

Routers

Servers
