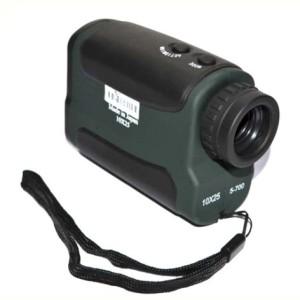

High Quality Clear 10x25 Laser Rangefinder Binocular Telescope Optics Model: 10x25 Magnification: 6X Objective lens: 25mm Exit pupil diameter: 4mm Field of view: 122m / 1000 m & 133 yards / 1000 yards Type of coating: fully multi-coated optics Type of prism: Bak 4 roof prism Focus system: Eyepiece focusing Ranger finder Laser type: class 1 (eye safe) Laser wavelength: 905nm Measuring range: 5-700m Accuracy: Normal condition+ Meters/ Yards display: Yes Misc Battery: CR2 Battery DC3V 'Low battery' indicator: Yes Display: LCD indicator Weight: 240g Dimensiopns: 75X40X110mm Note: 1. Depress the power button to turn the power on. 2. Depress the mode button to change 'Meters' to 'Yards'. Dynamic datas switching function receive data, hold down the 'Mode' button, switch units and automatically convert data and real-time show. 3. Press the 'action/ on' button one time, and begin ranging 1, the top-right corner of a simulated laser flashes signs in the loop, said it is lanching laser, the data show that measurement is in the button. Distance show '-' 4 short horizontal line, that goal can't be measured too far back. Data show that will remain until the next operation of the power of automatically. 4. When the battery is running low, in the upper left corner will display a battery symbol, that the battery should be replaced. 5. In the main interface, power supply will be no operation automically after about 30 seconds off. |
