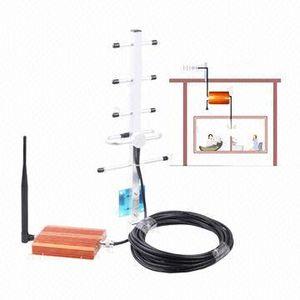

GSM 900 Cellular Phone Signal Repeater\Booster + Antenna with 70dB Uplink Gain, 890-915MHz

bargain

add to cart

GSM 900 Cellular Phone Signal Repeater /Booster + Antenna with 70dB Uplink Gain, 890-915MHz

Key Specifications/ Special Features:

Specifications:
- Uplink frequency: 890-915MHz
- Downlink frequency: 935-960MHz
- Uplink gain: 70dB
- Downlink gain: 75dB
- Gain adjustable range: MGC ≥30dB
- Output power: ≥20dBm
- Pass band ripple: GSM 4dB
- Guard band rejection: GSM (BW-60dB) ≤42MHz (BW-70dB) ≤45MHz
- I/ O impedance: 50/ N connector
- I/ O return loss: ≤-10dB
- Noise figure: ≤-8dB
- Inter modulation attenuation (Po = 13dBm) : ≥40dBc
- Transmission delay: ≤0.5us
- Ambient temperature: -10 to 50 degrees Celsius
- Power supply: 110-220V AC ±10%, 45-55Hz
- Size: 200 x 140 x 40mm
- Product weight: 1.06kg
- Coverage: 50 square meters indoor (approximately)
- Antenna: 50 x 8 x 2.2cm
Characteristics:
- Fully integrated 900MHz antenna system
- Powerful amplifier enables up to +85dB of signal gain including cable loss
- Intelligent signal processing and real time adaptive operating
- Automatically adjustable power levels as needed to ensure a consistent coverage footprint
- Re-programmable (in the field) enabling spectrum or carrier re-configuration as needed
- Auto-track LED diagnostics displays aid install and operating
Applications:
- Small regions signal blind or weak signal area, such as underground or semi-underground place of business, basements, underground parking and more
- Small-scale hot-spot signal complaint areas, such as conference rooms, a small supermarkets, small shopping malls, the office and small public areas and more
- Traffic and large social influence areas, such as bars, cafes, dance halls, cafes, fitness clubs, leisure and entertainment and more
- Homes, offices, luxury yachts, private cars, public security system and road safety management and more
