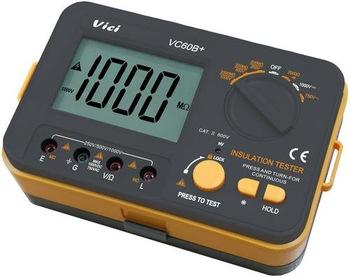

VC60B+ megohm meter, insulation resistance testers at jaw-dropping prices and with original quality

Advantages of using VC60B+ megohm meter:

1. VC60B+ megohm meter supports us high change rate, inductance energy-DCV converter.

2. Uses can change 9 V to DC 250 V / 500 V / 1000 V freely.

3. Meanwhile, VC60B+ megohm meter adopt digit-bridge resistance measurement for measuring electric insulation resistance, which ensures users more accurate testing figures.

Features of VC60B+ megohm meter:

1. VC60B+ megohm meter with large LCD display screen for us to easily and correctly readout.
2. Wide measurement range for VC60B+ megohm meter meets us large majority of demands.
3. VC60B+ megohm meter provides users high stability and reliability figures.
4. LCD display VC60B+ megohm meter needs low power consumption but support clear readout.
5. VC60B+ megohm meter is light in weight and it is compact construction, so that user can do easy operation.
6. Auto power off and asleep mode of VC60B+ megohm meter enable us environmental working tasks.

General specifications of VC60B+ megohm meter:

• Display: 60 x 32 mm (2.36 x 1.26 inch) large window LCD with maximum reading of 1999
• Over range indication: MSD '1' display
• Power supply: One 9 V PP3 Battery (not included)
• Power Consumption: unload consumption is less than 300 mW
• Operating Temperature: 0 ~ 40 °C
• Operating Humidity: 30% ~ 85% RH
• Dimension: 80 (W) x 185 (L) x 45 (H) mm (3.15' x 7.28' x 1.77' inch)
• Weight: approx. 360g (12.69 oz)

Electrical specifications of VC60B+ megohm meter

Note: Median resistance ensures that two terminal voltages is not less than 90% of test voltage of low terminal limit value of measure resistance.

One set VC60B+ megohm meter included:

• 1 x Insulation Tester
• 2 x Measurement cables with Clips
• 1 x Instruction Manual
