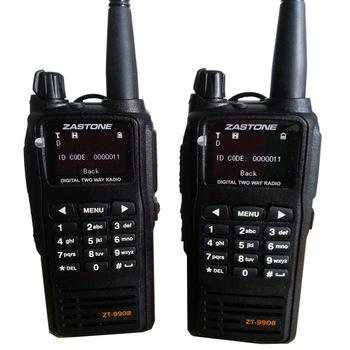

dPMR ZT-9908 UHF 430-470MHz Digital Standard: TS102 TS102 490 Walkie Talkie

Features

DPMR Digital Standard

Analog , Digital , both , Channel Selection

Multi Working modes optional

Aadvanced Organic Electroluminesence Display

UHF430-470MHz

199 storage channel

Single Call , Selective Call , Group Call function

Message Edit , Send and Receive support

ANI ID Function

Time display & setable

CTCSS 50/ DCS 104

DTMF Function

Multi Frequency Step Setting

Repeater Offset

Priority Channel Scan

Scanning modes Selection

Channels Name Edit

Specification

General:

Frequency:

430.000MHz-470.000MHz

Channels:

199

Channel space:

Digital: 6.25 kHz ; Anolog: 25/12.5kHz

Size:

132*63*40mm

Operating Temperature:

-10- +55 degrees

Power Voltage:

7.4V

Standby Current:

About 35mA

Weight:

about 300g

Transmitter:

RF power output:

7.4V HI≈4W±1dB LO≈1W

Emission Current:

HI≤1.6A LO≤0.80A

Maximum Frequency deviation:

Wide band±5.0/ Narrow band 2.5kHz

Harmonic:

(-65dB

Adjacent channel Power:

Wide band 60DB/ Narrow band 65DB

Receiver:

Sensitivity:

(0.25uV (12dB, S/ N)

SQ sensitivity:

(0.16uV

Intermodulation rejection:

55dB

Audio output:

≥800mW

Receiving current:

≤300mA

SQ standby:

Average 35mA

Including

Radio ZT-9908*1

Battery 1800Mah*1

Charger *1 (AC adaptor & desktop)

Antenna *1

Back clip*1

Strap *1

Manual in English*1
