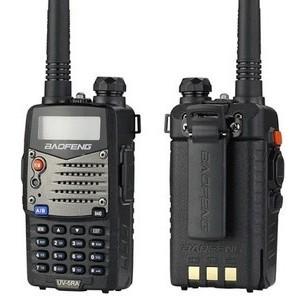

BAOFENG uv5ra 5w wifi wide range walkie talkie

GENERAL:

Frequency range: 65MHz-108MHz (Only commercial FM radio reception)

VHF: 136-174MHz (RX/ TX) ;UHF: 400-480MHz (RX/ TX)

Memory channels: Up to 128 channels

Frequency stability: 2.5ppm

Frequency step: 2.5/5/6.25/10/12.5/25kHz

Antenna impedance: 50Ω

Operating temperature: -20°c to +60°c

Supply voltage: Rechargeable Lithium-Ion DC7.4V 1800mAh

Consumption in standby: ≤75mA

Comsumption in reception: 380mA

Consumption in transmissio: ≤1.4A

Mode of operation: Simplex or semi-duplex

Duty cycle: 03/03/54 min. (RX/ TX/ Standby)

Weight: 130g (approximate)

Dual band , Dual frequency, Dual display, Dual standby transceiver

1. Large 'LCD' display

2. DTMF encode

3. Li-ion batterypack with 1800mAh high capacity

4. FM Radio (65MHz-108MHz)

5. 105 DCS 50 CTCSS

6. Alarm function

7. VOX available

8. Frequency Step: 2.5/5/6.25/10/12.5/25 KHz

9. Battery Save

10. Time out timer programmable

11. PC programming

SPECIFICATION

GENERAL

Frequency Range

136-174 & 400-480MHz

Channel Capacity

128

Channel Spacing

2.5/5/6.25/10/12.5/25KHz

Operated Voltage

7.4V

Standard Battery

1800mAh

Battery Life

10 hours

Frequency Stability

2.5ppm (-20 º C ~+60 º C )

Operated Temperature

-30 º C ~+60 º C

Antenna Impedance

50 Ω

Dimensions

58*110*35mm

Weight

About 205g

TRANSMITTER

RF Power Output

4W/ 1W

Modulation

F3E

Spurious Emission

(-60dB

FM Noise (N/ W)

≥-45dB≥-40dB

Audio distortion

Less than10. %

Adjacent Channel Power

≤-65dB≤-60dB

Max Frequency Deviation

5KHz (N) / 2.5KHz (W)

Frequency Error

500Hz

Modulation Distortion

0.1KHz (300-3000KHz)

Transmitting Current

About 1.4A

Package:

BAOFENG UV-5RA wide range walkie talkie

Ac Charger (round or flat plug)

Battery (Li-ion 7.4V 1800mAh)

Antenna

Hang Strao

Belt Clip and Screw

User's Manual

Earpiece
