Features:
-Easy installation, screw in like a bulb
-Built-in Micro-SD card device, accept 2GB-32GB
-Accept worldwide voltage AC 110-250V
-7 changeable functions
-Small video file size
-E27 Adapter Advantages:
Easy Installation, Simple Operation
Insert a Micro-SD card into camera, screw in like a bulb, and turn on power. That is it.
Worldwide usage
Accept AC 110V-250V for worldwide usage, providing different bulb adapters for different countries.

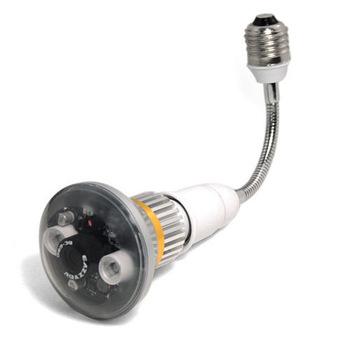

Good cover, like a real lamp
It is a DVR camera, Looks like a real bulb, no light generated. Thefts would not discover it
Local Storage, Small video file size
Support Micro-SD card 2GB-32GB, using 3gp video format, 4GB Card stores 24hrs video files (CIF format)
Powerful functions
Built-in a powerful security management system, 7 major functions are changeable to meet different applications
Easy change setting
All setting changes and updates are done on Micro-SD card, Quick, Simple and Easy Major functions:
| Function Name | Description | | Recording Mode : Real time / Motion Detection only | Real time Recording: Video files will be recorded continuously in 30 min per file
Motion Detection only: Records moving objects only. | | Resolution : VGA/ CIF | Two video resolutions for selection, VGA 640x480 / CIF 352x288 | | Video File Storage Mode : Circular / Non-Circular | Circular storage means if Micro-SD card is full, it will overwrite earlier files and keep storing. Non-circular storage means when Micro-SD card is full then stop recording | | Recording Indication Light On/ Off | Recording indication light On, blue indication light will be flashing when recording. Recording indication light Off means no light when recording. | | Time Stamp on Video | Stamping the date time on video or not | | Recording Audio | Recording video with sound or not | | Date time | Use computer system time or customize a time |
Specifications:
Model No.: BC-680 - using 3rd generation LED array (850nm wavelength)
System: ARM9 32-bit Microprocessor core
Image Sensor: 1/4' CMOS sensor
Len Resolution: 300000 pixels
Len: 3.6mm
Viewing Angle: 3.6mm - around 90 degree
Video Format: 3GP
Video Resolution: 640x480 (VGA) / 352x288 (CIF)
Audio Format: ADPCM format
Microphone: Built-in
Memory Card Device: TF Card, 2GB-32GB (not included)
IR LED: 2pcs 3rd generation LED array (850nm wavelength) , see red dot light at night
Night vision Distance: 10 - 15 Meters (3.6mm Len)
Motion Detection Distance: 5 - 8 Meters
Min. illumination: 0 Lux (IR on) , 0.5 Lux (IR Off)
Camera Adapter: E27 Extension adaptor
Input Voltage: AC 110V – 250V for worldwide
Power Consumption: <5W
Working Temperature: -20 - 70 Package contents:
1* Bulb DVR Camera
1* E27 Extension Adaptor
1* Card reader
1* User manual |
