A versatile tool that comes with an ultra sharp LCD image and bright LED light with adjustable control so you always have a clear view in tight spots. With fully adjustable screen and handle angle means you always have a comfortable view no matter where you're using it.

Helps you find lost small or tiny objects and view the internals of a combustion engine for cracks. Its is great for both professional and home use. Built with high impact plastic and a durable screen, making it a great addition to anyones tool box. Meet your curiosity and Have fun!

Great Idea for:
* Checking through walls
* Construction Site Tools
* Parts Assembly
* Science Education
* Workshop
* Laboratories
* Engine repair and Maintenance
* Checking under vehicles
* Pipe review and repair
* Down the drains
* Hard-to-reach areas
* Tight Area Surveillance
* Explore under water or under water surveillance
* Industrial inspection

Features

3.5' TFT LCD Full Color Screen
Adjustable Brightness value Contrast or Color in the LCD screen
Built in variable brightness LED camera lights
Fit your eye's and hand's angle with adjustable handle (0º, 45º, 80º) & changeable screen angle (0º to 90º)
1M flexible probe with IPX67 waterproof camera head & sensor
4 LED Lights with adjustable light intensity & 9.5mm outer lens
User-friendly Graphic (icon) UI
Extendable cable length to upto 6 meters
With TV Out function
Able to inspect under water, with waterproof camera head and tube
Tough, but still clear and soft enough
With FCC, CE & RoHS standards
Stable and high quality products
Maximum water depth of 1M for IPX67 waterproof camera head can be submerged
Image rotation function
Professional service

Specifications

W 3.5' TFT LCD Screen (QVGA 320 x 240, 16.7M colors)
TV Out Function
Video Format/ Sytem: PAL (It works for PAL & multi-system TV)
Camera & Tube: water resistant (IPX67)
Camera & Flexible Cable:
Outer Lens Diameter: 9.5mm
CMOS Camera Image Sensor: 1/9' VGA CMOS
Array Size: 640 x 480
Resolution: 0.3M pixels
Max Image Transfer Rate: 30fps for VGA
Sensitivity: 1800mv/ (Lux.sec)
Focal Range: 2 ~ 15cm
Optimal Focal Range: 4cm
Flexible Cable
Length: 1m
Outer Diameter: 5.8mm
Minimum Bending Radius: 60°
LED Light: 4 LED with adjustable brightness control
Water Splash Resistance (IPX67)
Lens: F2.8 2.2mm with 70-75° view angle lens
Visual Distance Range: 20 ~ 150mm (recommended at 40mm)
Display resolutions: Image: 640*480 pixels
Adjustable Handle: 0° 45° & 80°
Changeable Screen Angle: 0 ~ 90°
Temperature & Humidity
Operating: 0~50°C T.B.D.
Storage: 20~65°C T.B.D.
Battery: 4 x 1.5V AA type Alkaline Battery (working time: approx. 3-4 hours) (included)
Dimension
3.5' Monitor (w/ Border only) : 100 x 89 x 24mm (W x H x T)
Main Unit with Handle (straighten postition) : 100 x 290 x 78mm ( W x H x T)
Weight
main unit: 370g (battery excluded)
whole package: 1110g (extension cable not included)

Set Includes

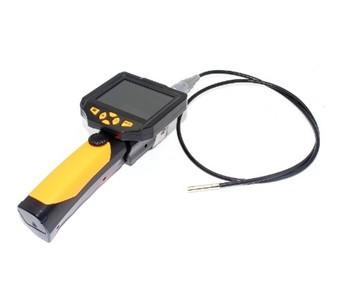

1 x 3.5' TFT LCD Video Inspection Camera
1 x Standard 1 meter Waterproof Metal Probe with 9.5mm Camera Head
1 x Pin Tip
1 x Hook Tip
1 x Mirror Tip
1 x Magnet Tip
1 x TV Out Cable
4 x AA Alkaline Battery ( FREE )
1 x Instruction Manual
Standard Factory Packaging
