wholesale Portable Endoscope Camera

100.32 USD

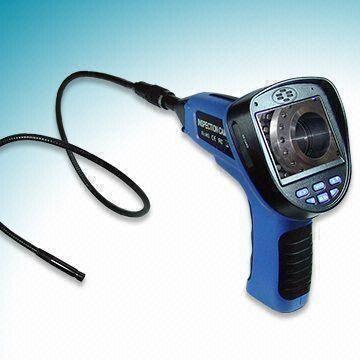

This 3.5' TFT LCD Industrial Endoscope (Visual Inspection Device) comes with a much smaller & thinner 5.5mm camera head. It allows to investigate into a smaller & slimmer hard-to-reach area to help in diagnosing broken part, weld point and other work that would otherwise not easily accessible for direct inspection. The LCD screen can be rotated by 180° to adjust the angle of observation with increased visibility up to 5x magnification capacity making the process more convenient and easy.
Main features includes voice recording via built-in Mic, 720x480dpi still photo & Video D1 (AVI movie file output) and display resolution of 320 x 240 pixel . It also has an SD card Slot that supports up to 32GB and selectable NTSC & PAL format.
The standard 1m Flexible & removable tube have a waterproof level IP67 camera head with optimized Focal Length of 6cm, you can inspect area under water, gaps and holes effortlessly.

Features
3.5' TFT LCD Monitor 16.7M colors
Camera Lens Diameter : 5.5mm
Allows for easy surveying of small, hard-to-reach places
Ergonomic advanced design, flexible and convenient to use
SD card slot (support up to 32GB)
Display resolution : 320*240 pixels
Camera Head resolution : 640*480 pixels
Photo zoom in/ zoom out: 5 times max capacity
With Composite TV Out with NTSC & PAL Format (Selectable)
Video with audio up to 720*480 pixels
Photo: Still shot and 3-Sequence Shots
Video: 1min auto stop recording & manual stop recording
With USB Port for direct transfer of file to PC/ Laptop
LCD Screen can be rotated up to 180°
With IP67 waterproof level rating
Language Selection: English, German, Chinese
SD card indicators: lock, unlock or disk full
Battery life indicator
Real-Time stamp for video & photo
With Built-in Microphone for recording analysis via voice
With Playback Mode

Specifications
3.5' TFT LCD Screen
Camera unit: Water Splash Resistance (IP67)
Camera Head :
Lens Diameter : 5.5mm
Removable Tube Diameter: 5mm
Tube length : 1M Cable
Image Sensor : 1/12' VGA CMOS
Resolution : 640*480; 0.32M pixels
Max. Image Transfer Rate : 30fps for VGA
Sensitivity : 1.3V/ (Lux. sec)
Focal Range : 6cm
Optimized Focal Range : 2cm ~ 15cm
File Format :
Photo : JPEG
Video : JPEG AVI
Resolution :
Image - 720 x 480 pixel
Video (w/ audio) - up to D1 720 x 480 pixels resolution @ 30fps
Zoom In/ Out ( 5x Maximum )
4 LED lights (adjustable brightness)
Interface :
SD Card (up to 32GB SDHC)
USB 1.1 (compatible to USB 2.0)
Composite Video out
NTSC/ PAL Video Out changeable
OSD Language : English (Default) , German and Chinese
Battery : 4 x 1.5 AA type Alkaline Batteries (not included)

Set Includes
1 x Handheld Industrial Recording Endoscope with Mic & Speaker
1 x Standard 1m Flexible Tube w/ 5.5mm dia. Waterproof Camera Head
1 x 2GB memory SD card (FREE)
1 x AV out / Video Cable
1 x USB Cable
1 x Hand-strap
1 x Tiny Screw
1 x User's Manual
1 x Standard Paper Gift Box
