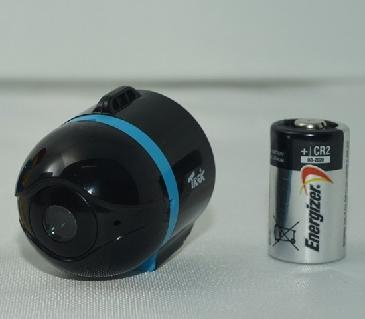

Ai-ball World's Smallest Wifi Mini Surveillance Camera Spy IP Cam Wireless

Features:

Mini-size and light weight, ultraportable.
Built-in Wifi, freely connecting with wifi-enabled devices.
Easy to use, with no complicated operating steps.
Remote camera viewing through WLAN 802.11 b/ g/ n.
Remote audio & video recording through PC.
Video snapshot.
Support LPEG & MJPEG recording.
SSID and password setting for privacy protection.
Powered by battery (CR2) or charging cradle stand.

Note: 1. Mobile phone must have wifi interface for Ad-hoc and web browser for using Ai-ball.
2. You need to install the software JAVA JDK1.5 (or above) if you want to take a photo or record the audio & video through PC or smartphone.

Specifications:

Camera color: Yellow & black/ Blue&Black
Camera: VGA 640 * 480
Camera view angle: 60 degree
Camera focusing: 20cm to infinity
Access method: Ad-Hoc, Micro-AP, Infrastructure
Wireless standard: IEEE standard 802.11/802.11b/ 802.11g Compliant
Frequency range: 2400 – 2492 MHz (1- 13 channel (IEEE802.11/11b/ 11g) ISM band)
Wireless security: WEP 64/128, WPA (TKIP) , WPA2 (AES-CCMP)
Wireless range: Infrastructure: 20m (typical) ; Ad-hoc: 7.5m (typical)
Antenna: Single and internal
Allowable voltage: 2.7V-3.6V
Allowable noise ripple: 60mV p-p or less
Camera size: 3 * 3.5cm / 1.18 * 1.38in (diameter * height)
Camera weight: 11g / 0.4oz

Camera Specifications
• VGA 640x480, QVGA 320x240, QQVGA 160x120, up to 30fps
• F2.8
• View Angle: 60 degree
• Focusing: 20cm to Infinity

Video Recorder
• Motion JPEG
• Compression mode : standard, high
• Typical bit rate: (VGA) : standard (2500 kbps) , high (1600 kbps) (QVGA) : standard (1100 kbps) , high (800 kbps) (QQVGA) : standard (600 kbps) , high (400 kbps)

Video Snapshot
• JPEG
• Compression mode : standard, high

Wireless Interface
• IEEE 802.11b/ g 2.4GHz ISM Band

Wireless Security
• WEP 64/128, WPA, WPA2

Wireless Range
• Infrastructure: 20m (Typical)
• Adhoc: 7.5m (Typical)

Wireless performance*
• Infrastructure: 54Mbps, max. connection rate
• Adhoc: 11Mbps, max. connection rate
• Note: Wireless performance varies with distance and access point usage.

Antenna
• Single, internal

Dimension / Weight
• 30mm (Diameter) x 35mm (L)
• 100g

Power Supply / Consumption
• Battery operated
• Voltage: 3.0V
• Power: 750mAH (CR2)
• Current consumption: 320mA (typical) ; 350mA (maximum)

RoHS
• RoHS Compliant

User interface
• Menu driven via Embedded Web server on module

Net weight: 11g
Ai-Ball size : 36x30mm

Packing weight: 63g
Packing size : 300x217x85mm

Package:
1 x smallest Ai-ball wifi camera
1 x Lanyard
1 x 3.0V battery
1 x user manual
