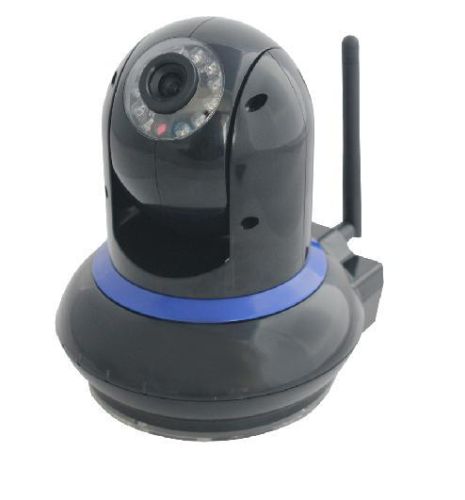

Pan/ til Home use WiFi IP camera 720P with P2P IR led HD resolution support Onvif `2.0 Megapixel CMOS Sensor `4.2MM Lens `12 Led light , 8-10M Infrared Lamp Range `H. 264 Compression Format `Transmission up to 15FPS/ 2MP `Support two way audio `DC 5V, 2A. `support latest Onvif protocol Specifications: | Item | IPS-Eye02W | | Device | 1.0Megapixel CMOS Sensor | | Size | 1/4 inch | | Effective Pixels | 2MP: 1600*1200 , 1MP: 1280*720 | | Min. Scene Illumination | 0.5 LUX (IR ON) | | B/ W | Yes | | IR Sensitivity | Yes | | IR Cut | Yes | | Lens | 3.6mm | | Viewing Angle | Horizontal355°vertical 90° | | Linux System | Internal Linux system | | IR distance | 20 M | | Motion Detection | Yes | | Electronic Shutter | 1/5-1/15000 sec | | BLC | Yes | | AGC | Auto | | White Balance | Auto | | S/ N Ratio | ) 50 dB | | Video Compression | H. 264 | | Picture Resolution | 2MP: 1600*1200 HD: 1280*720 | | Bit Rate | 80 K~ 2.0 M bps | | Image Frame Rate | 15 FPS | | Audio Compression | G. 711 | | Two way audio | support | | Alarm I/ O | 1 channel in/ out put | | Mount Types | Wall Bracket | | Ethernet | Ethernet (10/100 Base-T) ,RJ-45 connector | | Protocol | TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP, ICMP, POP3, NTP, RTP, and RTCP | | Web Browser | Microsoft Internet Explorer 6.0 above | | SDK | SDK-H | | Security | Administrator password protection | | Temperature | -30°~60°C | | Humidity | -10~85% | | Power Requirement | PoE (IEEE802.3af) | | Power Consumption | 10-12W (DC 12V, 1A) | | Certification | CE , FCC | |
