The monitor kit includes a 8 road (1 + 7 D1 road CIF) h. 264 real-time network digital hard disk video recorder and eight indoor/ outdoor infrared waterproof type cameras day and night. Can quick and easy for your family or business environment to conduct a comprehensive monitoring.

This suit the host is a fully integrated and 8 independent channels real-time digital hard disk video recorder, USES the embedded Linux operating system, and supporting a remote control, convenient installation and operation. Support for access networks, VGA video output, USB2.0 backup, this is the perfect home or small business monitoring system is preferred. In addition, this product has adopted the latest 3 g mobile communication technology, can through the mobile phone preview.

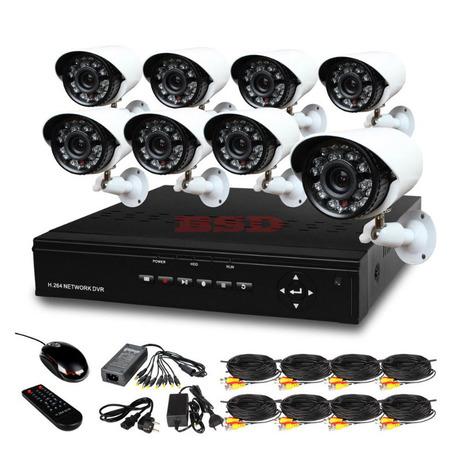

Packing list:

1 8-way h. 264 network digital video video PREFIX = O

One-third of eight inches color CMOS 480 line 24 IR leds waterproof camera

8 sets of 20 m cable power video plugin and play China central television (CCTV) cameras

A 12 v / 2000 ma4 port power supply surveillance cameras

A mouse

A remote control

A vehicle with DC12V power supply only adapter, hard disk video recorder

Four waterproof CCTV camera stand

This user guide

1 CD

Digital hard disk video recorder

Video compression format

264 H.

Video formats

NTSC/ PAL

The operating system

Linux -based

Video input/ output

BNC 8 - Channel 1 - Channel Input/ Output

Other video output

VGA

Audio input/ output

2 ch RCA Input / 1 ch BNC Output

Display frame rate

NTSC: 240 FPS @ D1 / PAL: 200 FPS @ D1

Display resolution

NTSC: D1 (720 x 480) /PAL: D1 (704 x 576)

Road like frame rate

NTSC: 30 FPS @ 1 ch D1/210 FPS @ 7 ch CIF /

PAL: 25 FPS @ 1 ch D1/175 FPS @ 7 ch CIF

The video resolution

Optional: NTSC: D1 (720 x 480) ;CIF/ (352 x 240)

PAL: D1 (704 x 576) ;CIF (352 x 288)

Video mode

Continuous time setting/ dynamic monitoring

network

RJ45, 10 m / 100 m

Network protocol

TCP/ IP, DHCP and DDNS

The remote access

LAN or Internet browsing

Yuntai operation

The RS - 485.

HDD hard disk interface

SATA, support 320 gb - 2 TB

Playback modes

Ordinary fast forward/ fast / / frame by frame

usb

The USB Backup/ USB 2.0

The remote control

Infrared remote control

The power supply

DC12V, 2.5 A

Camera specification parameters

The image sensor

A third Color CMOS'

TV system

PAL/ NTCS

The effective resolution

NTSC: 652 (H) x 582 (V) /PAL: 628 (H) x 582 (V)

Horizontal resolution

480 TV Lines -

The lens

The 3.6 mm

IR infrared LEDs

24 LEDs

Infrared lighting model (night)

Up to 65 ft

Minimum illumination

0.0 Lux

IP rate

48 the db

S/ N ratio

1.0 the Vp - p, 75 ohms

Video output

yes

Waterproof properties

25 ° ~ 122 ° F/ F - 32 ° C ~ 50 ° C

Working temperature

12 v DC

The power supply

0.33 LBS

material

Metal case
