Wholesale 3 in 1 CCTV Vedio Data Power Lightning Thunder Lightning Device

7.84 USD

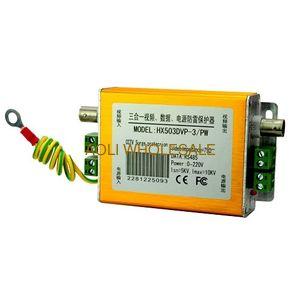

3 in 1 CCTV Vedio Data Power Lightning Protection Thunder Lightning Arrester Protection Device
Description:
Protect Object: video, power and data
Insertion Loss: 0.3dB
Response Time; ( 0.5 ns
Maximum Discharge Current (Imax) : 10KA
Max. Continuous Working Voltage: 5V
Limit Voltage: 7.8V
Maximum Discharge Current (Imax) : 10KA
MAX Data Transmission Speed: 10MHz
Continuous Working Voltage: 12V 24V 220V
Limit Voltage: 18V 47V 470V
Continuous Working Voltage: 5V
Limit Voltage: 8.8V
MAX Data Transmission Speed: 20MHz
Large flow capacity with rapid response speed
Adapt multi-protective lines
Protects video & power ports of your security camera from the damage of lightning & surge.
Easy to install. Install near security camera first, 'IN' end is for input and 'OUT' end is for output to security camera, then set ground wire well and straight.
Interface : Power Terminal Strip
Material: Shielded Aluminum Alloy
Size: 110*64*25mm
Used widely in low voltage general electricity cabinet, distribution board of buildings, outdoor electricity cabinet, etc.
Package:
3 in 1 surge protective device * 1
user's maual * 1
