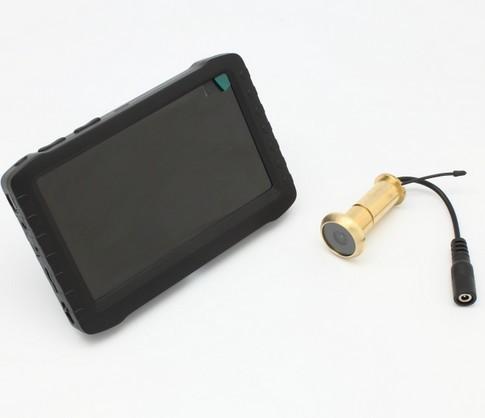

5.8G Wireless Door Peephole Camera with 5inch DVR Motion Detection

137.64 USD

(No-interference frequency, 100m range; 90 degree VOA; 0.008lux; 5-inch screen; 800X600pix; motion detect recording)

Why Install This Product ?
Do You Want to monitor if any unauthorised people is outside your House?
Do You Want To Know Who Come To Your House ?
Get The Door Peephole Camera Kit Now!!
No visible wires from the door's exterior, and exact same looking as original one, so the camera won't look suspicious;
Pure brass materia, it's noble and durable;
5.8G no-interference frequency, 100m wireless range;
Records video in high and low light (0.008lux) situations;
Wide-angle (90°) lens makes it easy to capture footage of a corridor;
5-inch large screen DVR playback Video instantly without connecting to computer;
Motion Detection Available : Record Only when there is movement detected outside the Door (Replaced CCTV 24 Hrs Monitoring & Protect Home From Robbery) ;
No need any cable installation, just plug and play;
Support SD Card (up to 32G) recording for any evidence needed.

Outline Size of camera:
Specification:
(1 ) Camera
Working frequency G1-within 5.8G CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz.
CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz Working Channel: 1 of 24
G2-Beyond 5.8G CH9: 5705MHz; CH10: 5685MHz; CH11: 5665MHz; CH12: 5645MHz.
CH13: 5885MHz; CH14: 5905MHz; CH15: 5925MHz; CH16: 5945MHz
G3-Within 5.8G CH17: 5733MHz; CH18: 5752MHz; CH19: 5771MHz; CH20: 5790MHz.
CH21: 5809MHz; CH22: 5828MHz; CH23: 5847MHz; CH24: 5866MHz
Antenna External antenna
RF OUTPUT POWER 25mW
TRANSMISSION RANGE 100 meters
SENSOR DIMENSION NTSC: 720 (H) *480 (V) PAL: 720 (H) *576 (V)
HORIZONTAL RESOLUTION 480TV Lines
SENSITIVITY 0.008Lux/ F1.2
LENS & VIEW ANGLE 0.5mm F1.2 / 90 °
PEEPHOLE SIZE (L x D) 38-60mm X 14mm
WEIGHT (g) 20g
WORK CURRENT 230mA
POWER REQUIREMENT DC 4V
OPERATING TEMPERATURE - 20°C ~ + 50°C , Relative humidity 85﹪

(2) 5-in HD mini DVR:

Items
Wireless Receiving Wireless freq.
(1 of 3 groups)
Within 5.8G-A 8 channels CH1: 5865MHz; CH2: 5845MHz; CH3: 5825MHz; CH4: 5805MHz.
CH5: 5785MHz; CH6: 5765MHz; CH7: 5745MHz; CH8: 5725MHz
Beyond 5.8G-B 8 channels CH1: 5705MHz; CH2: 5685MHz; CH3: 5665MHz; CH4: 5645MHz.
CH5: 5885MHz; CH6: 5905MHz; CH7: 5925MHz; CH8: 5945MHz
Within 5.8G-C 8 channels CH1: 5733MHz; CH2: 5752MHz; CH3: 5771MHz; CH4: 5790MHz.
CH5: 5809MHz; CH6: 5828MHz; CH7: 5847MHz; CH8: 5866MHz
Sensitivity -88dB
Receiving distance 100 meters
AV IN TV system NTSC / PAL
Output voltage 3.6-4.2 V
HD 5-inch LCD screen Active area 108mm (W) X 64.8mm (H)
Resolution 800 X 480 Pixel
Luminance for LCM 200 cd/ ㎡
Cape clear 5-inch LCD screen Active area 118mm (W) X 62.8mm (H)
Resolution 480 X 272 Pixel
Luminance for LCM) 300cd/ ㎡
Video Resolution 720*576 / 640*480
Video compress MPEG-AVI 30fps
Play format MPEG-AVI
Audio Frequency 20HZ-20KHz stereo
Earphone Output Left: 20MW+ right 20mW (16O) (suit to largest volume)
Speaker 1W
Photo Format JPG/ JPEG
Storage External SD card TF card 1GB-32GB (optional)
32GB recording time 10-32 hours
1GB photos 15625pcs
Operating system PC Windows & Mac OS
Port USB 2.0
Language Multiple
Power Voltage DC 5V
Current (receiving mode) 660MA
Current ( recording mode) 680MA
Current (recording with off-screen mode) 340MA
AC adapter DC 5V 2A
Built-in battery Li-battery 3200Mah
Standby time Wireless record ≥9.5 hours (off-screen) ; ≥5hours (on-screen)
Wired record ≥12 hours (off-screen) ; ≥6hours (on-screen)
LED camera not included.
Size (L x W x H) 131mm x 86mm x 18mm
Weight (g) 205g
