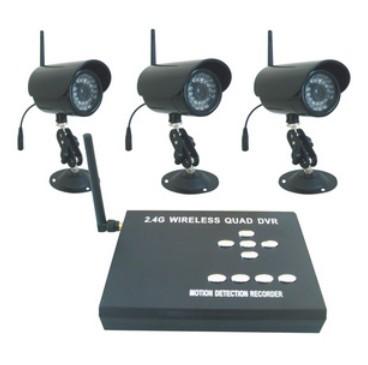

Wireless camera | Wholesale DVR monitor suit wireless digital monitor
This product is low cost household digital wireless security system, the camera used dynamic detection technology, SD card recording, it supports single and 4 road at the same time displays and video/pictures. Can manually and automatically when a moving object videos and pictures.
Two: the scope of application: warehouses, shopping malls, family security, care for children and the old man, and so on.
Three:
L support standard NTSC/PAL video output.
L support single and 4 road show at the same time
L support video recording
L support system information on the screen display (OSD)
L support 32 gb SD card.
L support real-time clock display
L hd CMOS image sensor
L support motion detecting video camera
L the circulation function of coverage
L and 4 can be single picture and video/photos
L support single screen video can record audio at the same time,
L built-in wide receiver power supply voltage regulator circuit, power supply can be from DC: 6 to 12 v / 500 ma
Electrical parameters
A: receive
function
describe
Working frequency
2.4 G ISM digital public spectrum
Way to work
AFH and TDMA
Receiving sensitivity
- 90 DBM
Working voltage
DC6-12 v / 1000 ma
Standby current
≦ 250 ma
Working current
≦ 500 ma
Video output
1 the vp - p CVBS
Video output formats
PAL and NTSC
The video format
The H264 + PCM
State of a single picture record: 512 * 384 @ 25 FPS
4 pictures state record: 320 * 240 @ 12 FPS
Video playback
Full-screen playback single picture
Photo format
A single picture status: 512 * 384 JPG
4 screen state: 320 * 240 JPG
Signal to noise ratio
46 the db
Temperature range
0 ℃ to 50 ℃
B: launch
The use of voltage
DC12V / 500-1000 ma
The transmission frequency
The 2.4 GHz ISM digital public spectrum
Transmission power
17 DBM
Transmission distance
Empty area: 150-250 m
Working current
No night vision: 250 ma MAX night vision: 250 ma MAX
The camera resolution
300000
Night vision distance
6-10 meters
Temperature range
0 ℃ to 50 ℃
