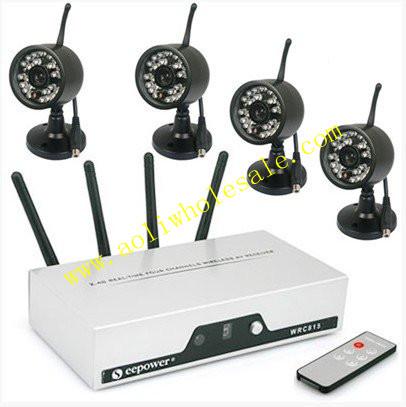

The product selling point:
) a receiver collocation 4 camera work at same time, picture the division can add four channel 4 real-time prison look.
) hd CMOS chip, 300000 pixel video collection.
) advanced alloy material shell, waterproof, dustproof design, suitable for outdoor use.
) built-in infrared night-vision light, effective distance of more than 8 m.
) 2.4 GHz international standard public frequency, four effective frequency can be chosen.
) channels scanning and the channel jump for 1-4 function camera work at same time.
) built-in microphone and speakers realize video synchronous monitoring.
) unimpeded transmission distance at least 100 meters.

The products are suitable for household villa, the Internet bar, the small supermarkets, on a small scale monitoring guard against theft, product easy installation, plug and play, no wiring; Wireless camera transmission effective distance 30 to 50 meters, built-in LED lamp, clear night night vision effect, can and computer, television, monitor of display devices connections, and can save video images

Parameter table:

Project parameters
Transmission frequency ISM 2400 ~ 2483 MHz 4 frequency *
Modulation mode FM
The antenna to the antenna
The transmission distance of 100 m
Working temperature-10 ~ + 50 / + 14 ~ + 122 F
Storage temperature 20 ~ +-60 / -4 ~ + 140 F
Work humidity 85% RH
Photographic camera CMOS chip
628 x 582 pixels
55 ° Angle
Minimum intensity of illumination 5 Lux/ F1.2 & 0 Lux (infrared lamp open)
Night vision 8 m distance
Transmission power 80 mW
The power DC5V 1000 mA
Size 57 mm x 67 mm
Weight 120 g
Receiver receive sensitivity than-85 dBm
Antenna interface 50 ohm SMA
Power DC 5 V 1000 mA
Video output 1 Vp-p @ 75 ohm
Audio output 1 Vp-p @ 600 ohm
Size 210 mm x 80 mm * 45 (advanced aluminum alloy shells)
Weight 400 g
