*(2.4GHz) Wireless Infrared night vision Camera.
* Infrared night vision CMOS Wireless Camera with 5m night vision range.
* 4 Channel Receiver work with 2 Cameras.
* 420 TV Line Horizontal Definition.
* 100m transmission distance without block.
* PAL and NTSC system.
* Built-in Microphone in Camera enables Audio Monitoring.

Specification
Camera:
TV System: PAL/ NTSC
Validity Pixel: PAL: 628 (H) x 582 (V)
NTSC: 510 (H) x 492 (V)
Image Device: Vimicro 0702 Vision CMOS
Horizontal Definition: 420 TV Lines
Angular Field of View: 45degrees (f=6mm)
Minimum Illumination: 0 Lux
Night Vision Range: 15m
Band Width: 25M
Synchronization System: Internal
Scanning Frequency (H) : PAL: 15.625KHz
NTSC: 15.734KHz
Scanning Frequency (V) : PAL: 50Hz
NTSC: 60Hz
Backlight Compensation: Auto
Electronic Shutter: 1/50 (1/60) ~ 1/100000 Sec
White Balance: Auto
S/ N Ratio: ) 48db
Gamma Correction: ) 0.45
Operation Temperature: -10 ~ +50 / +14 ~ +122C / F
Transmission Frequency: ISM 2400 ~ 2483MHz
Power Supply: DC +12V

Receiver:
Receiving Frequency: ISM 2400 ~ 2483MHz
intermediate Frequency: 480MHz
Frequency Stabilization: ±100KHz
Demodulation Mode: FM
Antenna: 50 ohm SMA
Receiving Sensitivity: ≤-85dBm
Video Output: 1Vp-p @ 75Ω, S/ N) 38dM
Audio Output: 3Vp-p @ 600Ω
Operation Temperature: -10 ~ +50 / +14 ~ +122 / F
Operation Humidity: 85%RH
Power Supply: DC +12V

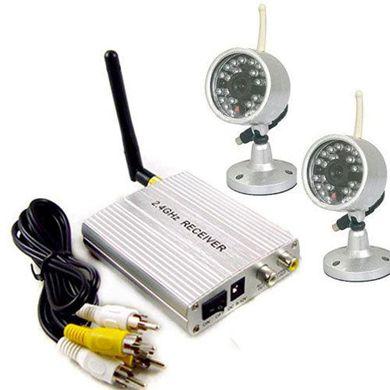

Package Contains
1 x 2.4GHz 4-Channel Remote Wireless AV Receiver
2 x 2.4GHz 24LED IR Day&Night CMOS Camera
1 x Antenna for Receiver
3 x Adapter
1 x User Manual
