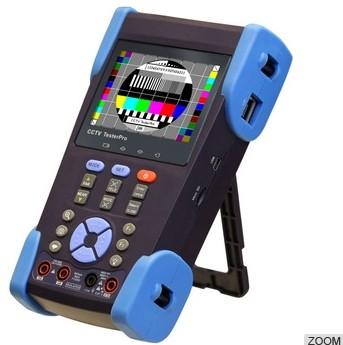

3.5 TFT-LCD CCTV IP camera tester

173.68 USD

3.5 'TFT-LCD CCTV Tester and video tester with IP address search and POE testing

3.5 TFT-LCD 480*320 global view HVGA LCD screen display; brightness/ contrast/ Color Saturation adjustable. ; PTZcontroller, Set and Go preset position; UTP cable test ; PTZ data search data analysis, RS485 control; DC12V 1A output power ; Audio test; PING testing; Ethernet Port plicker and link monitor ; 10xzoom video image display and output; POE Voltage measurement , , IP address searching; LED lamp; video screenshots, video record; Mico SD card ; video singal level test; NTSC/ PAL, Enhanced color bar generator

Specifications

Model
HVT-2601 (VI generation)
Video Test
Signal mode
NTSC/ PAL (Auto adapt)
Display
3.5 inch digital TFT-LCD , 480 (RGB) x 320 resolution
LCD adjustment
Brightness, Contrast, Saturation adjustable
Video IN/ OUT
1 channel BNC Input & 1 channel Output
Video
Output Mode
1.0 Vp-p
Video Level test
Level test
Video signals measured in IRE or mV
PTZ controller
Communication
Support RS232 and RS485
PTZ Protocol
Compatible with more than 30 protocols such as PELCO-D/ P, Samsung, Panasonic, Lilin, Yaan, etc.
Baud Rate
60012002400480096001920057600115200bps
Video Signal Generation
Color bar generator
Output one channel PAL/ NTSC color bar video signal for testing monitor or video cable. (red, green , blue, white and black color )
UTP Cable tester
UTP cable test
Test UTP cable connection status and display in the screen. Read the number of the test box.
DC12V 1A power output
DC12V power output
Output DC12V1A power for camera
Audio input test
Audio input test
test the pickup and other audio equipments on the front-end
RS485 data analysis
Data Monitor
Captures and analyzes the command data from controlling device
10x Zoom Image
Image10x zoom

10x zoom image display and video out

Photograph, Video record, Record playback
Photograph
snapshot and save the current image as JPG file
Video record
Video record and storage the file
Record playback
To view the storage file in the SD card
Port flicker
Port flicker
Find the connected POE port quickly.
IP address scan, Link monitor, PING test
IP address scan
Find out the connected IP camera or the other network equipment IP address quickly.
Link monitor
Check the IP address whether is occupied
PING testing
Test IP camera or Ethernet port of the other network equipment whether work normally, and check the IP address
PoE tester
PoE tester
Display the power supply voltage and cable connection states
POWER
Power Adapter
DC 5V (1.5A)
Battery
Built-in 3.7V Lithium polymer battery , 3000mAh
Rechargeable
After charging 3-4 hour, working time lasts 11 hours
Low Consumption
Energy saving technology, the battery icon real-time display
Parameter
Operation setting
English/ Chinese and other languages OSD menu
Auto off
5-60 (mins)
Keytone
On/ Off
General
Working Temperature
-10°C ~+50°C
Working Humidity
30%~ 90%
Dimension/ Weight
194mm x 112mm x 48mm / 540g
