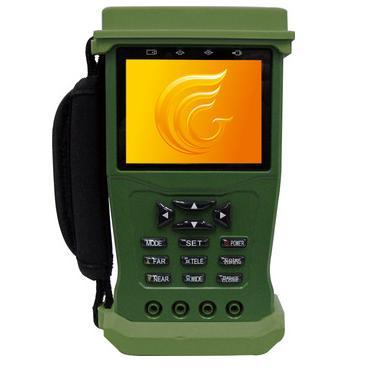

CCTV Tester Video 3.5' Monitor A/ V PTZ Controller 12V 1A Output UTP Multimeter | Model | Multifunctional CCTV Tester GA-K695P | | Signal Mode | NTSC/ PAL automatically suitable | | Display | 3.5 inch LTPS LCD screen, 960x240 resolution | | Video Input/ Output | 1 Channel BNC | | Communication | RS485 | | Protocol | PELCO P/ D and so on, special protocol customized | | Baud Rate | 1200, 2400, 4800, 9600, 19200bps | | Power Output | DC12V, supply power to camera | | UTP Cable Test | Test UTP Cable connection state and display on the screen. | | RS485 Data Test | Test the RS485 data sent from control device. | | Power Supply | DC9V/ 2A | | Battery | 1400mAH | | AC/ DC Voltage | 0~300V | | AC/ DC Current | 400.0uA, 4000uA, 40.00mA, 400.0mA, 10A | | Resistor | 400.0Ω, 4.000K, 40.00K, 400.0K, 4.000M, 40.00M | | Capacitor | 4.000nF~400.0MF | | Diode | 0~2V forward voltage, min. resolution: 1mV | | Switch/ off Test | (50Ω sound alert | | Test Speed | 3 seconds per once | | Work Temperature | -30 C~+70 C | | Work Humidity | 30%~90% | | Dimension | 105*44*188 mm | |
