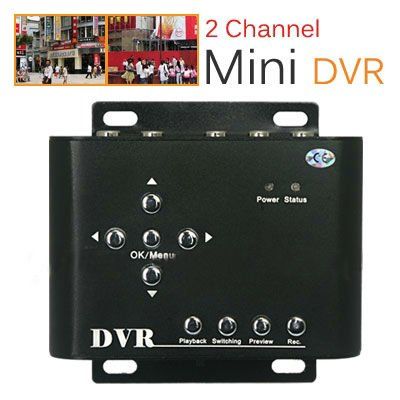

Mini 2CH Security CCTV DVR Support D1/QVGA up to 32GB SD/SDH Card Connect with PC to Playback by USB Interfaces

• AV Input: 3 RCA ports (2 video+1 audio)
• AV Output: 2 RCA ports (1 video+1 audio)
• Frame: Pal:25f/s NTSC:25f/s
• Resolution: D1:720X576 QVGA: 360X288
• Compression format: M-JEPG and Standard JPEG
• Detect mode: Motion detection
• Working mode: Recording/snapshot
• Memory: Supprot SD/SDHC card(=32GB
• USB port: USB 2.0
• Power: DC12V (5V-36V optional)
• Working electricity: (=250Ma
• Working temperature: -10 degree C to +50 degree C
• Working humidity: 20% to 85%

• D1/QVGA video resolution selectable
• Video at D1 resolution: 720X576,QVGA resolution 360X288
• Pictures at D1 resolution: 720X576
• 1 camera recording frame: Pal 25f/s. NTSC 30f/s.
• 2 cameras: recording frame 10f/s, another camera is taking photo model
• 5s/10s per video clip when motion detected
• Continuously recording by manually
• Picture-in-Picture (PIP) real time viewing
• Overwrite automatically when memory full
• Connect with PC to playback by USB interfaces

• 1 x 2 Channel Mini DVR
• 1 x Power Adapter
• 1 x USB Cable
• 2 x RCA Cable
