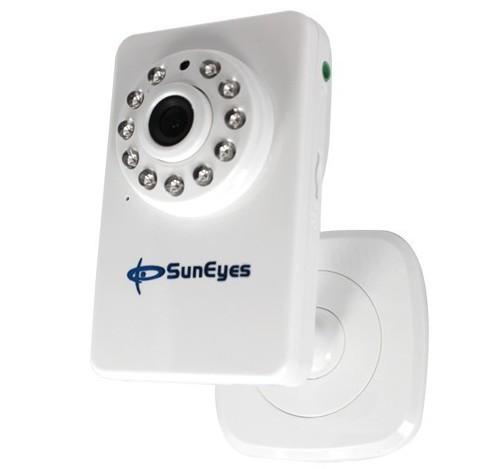

| Model: HZCAM-6892WP |
| Catalogue | Type | Parameters |
| Features | View by phone | Support monitoring via mobile devices on line (such as iOSAndroid OS) |
| View on PC | support windows system |
| Monitor Advantage | Support IPhoneAndroidComputer monitor. Miscrosoft certification plugin, no virus risk. |
| Sever cluster | Using Amazon Cloud PnP servier cluster, Intelligent application and super stable |
| UID Technology | UID scan technology applied, easy to operate, and highly confidential. |
| Easy operation | Plug & Play, technology, penetration degree can be 99%, applicable toany complex network surroundings. Easy operation: 1. plug the cable and power line, 2. install computer software, scan code to add camera. |
| Super Client | 149162536, 6481-channel , no user limited , centralized monitor |
| System | Operation system | Embedded Linux OS |
| System security | Supports account, password authority management |
| DDNS | no need ddns |
| Collection | Image sensor | 1/4inch 0.3 Megapixel line by line CMOS sensor |
| SNR | ≥50dB |
| Minimum Illumination | 0.3Lux |
| 3A | Auto White Balance, Auto Exposure, Automatic Gain |
| Lens | Standard: 3.6mm |
| Video | Compression Format | m-jpeg |
| Resolution | VGA640*480QVGA (320*240) |
| Maximum frame rate | 30fps |
| Bit Rate | 32Kbps4Mbps can be set |
| Adjustment | light intensity, contrast ratio, saturation level are adjustable. |
| Nightvision | IR-CUT | no |
| Effect | 10 Φ5mm LEDs IR Distance: 10 m |
| Audio | Encode formats | ADPCM |
| Input | Built in Microphone |
| Output | one channel linear output, normal connector Of 3.5mm |
| Memory | Memory Socket | Automatic pop-up slot for SD card |
| View by SD Card | Remote browsing, download of content from 32G tf card |
| Network | Socket | RJ-45 10/100Mb self-adaptable Ethernet slot |
| WIFI | WIFI 802.11 b/ g |
| Visitors Online | Support 8 visitors viewing on line at the same time |
| Alarm | Alarm Detection | Support motion detecting |
| Physical index | Power | DC 5V2A |
| Comsumption | <6W |
| Temperature | -10~50 |
| Humidity | 10%~85% |
| Weight | Gross: 656g Note: in kind prevail |
| Package size | 200*120*179mm (L*W*H) |
| Certification | Certificate | ISO FCC CE RoHS |
