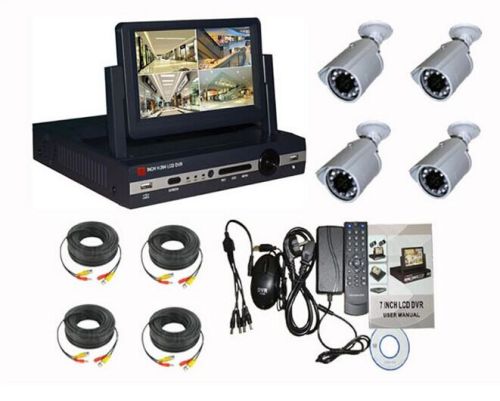

Wholesale 7 Inch 4CH CCTV system set, HD DVR with screen

160.65 USD

1/3 'CMOS 600 line (double filter infrared camera) * 4
Camera bracket * 4
Universal remote * 1
Mouse 1
Drive screw * 4
Power supply * 4
A four * 1
20 meters with BNC joint video line * 4
User manual * 1
CD * 1
The characteristics of DVR:
System resources: four full D1 video playback, real-time
Video: 4 channel video input, 1 channel composite video output, support VGA video output
Resolution: (7 inch with display: 1024X768) /(VGA output: 1280X1024)
Video frame rate: PAL: 25f/ s (adjustable) NTSC: 30f/ s (adjustable)
Monitor resolution: PAL: 720x576 (D1) NTSC: 720x480 (D1) ;
Audio: 4 audio input 1 output
Video: manual recording, timing, alarm video, video motion detection recording
Video: 500G (21 days) /1T (42) /2T (84 days)
Camera features:
1/3 'CMOS 600 line (double filter infrared camera)
24 Phi 5 LED/ minimum intensity 0 (IR LED on) / infrared distance of 15 meters
Waterproof type
Automatic gain function
Product features:
The integration of L 7 inch digital LCD screen, 1024X768 resolution;
L display and supports can rotate around the front panel turned 120 degrees, 330 degrees screen rotation;
The L uses advanced H. 264 video compression format, compression ratio is high;
L embedded SOC processor with high performance;
L uses embedded Linux operating system known to stability;
L supports the P2P plug and play network, 3G, WIFI, 960H;
L support for D1 video playback quality, while 4 road;
L support for the mouse or the front panel button operation;
L supports 1280X1024 resolution VGA output;
L supports mobile phone monitoring function;
L supports USB and network backup function;
L support camera control, remote network access function;
A powerful l client program, playback, support network backup.
The functions of various l HD screenshots, PTZ control and so on.
Specifications:
Model
JT-8904D
JT-8908D
Operating system
Embedded Linux
Mode of operation
Graphical menu display, mouse support, panel, remote control.
Video format
PAL, NTSC
System resources
Can support four machine, four road D1 video playback, the D1 real-time, also can carry on the network view, mobile phone browser.
Video compression format
H. 264
Audio compression format
G. 711A
The video mode
Manual recording, timing, alarm video, video motion detection recording
Video search
Time retrieval, search, retrieval, log retrieval channel
Backup
Network backup, backup USB
Video input
4 road BNC
8 road BNC
Video output
LCD: 7 inch (resolution: 1024X768) ; CVBS; VGA resolution: 1280X1024
Audio input
4 road RCA
Audio output
1 road RCA
Monitor resolution
PAL: 720x576 (D1) NTSC: 720x480 (D1) ;
Playback resolution
Visual recording quality and
Video quality
Adjustable
The mobile frame measuring
Each channel can be independently set frame measuring area and sensitivity
Screen display
Single channel or four channel multi channel display
Video frame rate
PAL: 25f/ s (adjustable) NTSC: 30f/ s (adjustable)
Video storage
The local hard disk, network
Local playback
Select any 4 channel playback
Tilt control
RS485
Hard disk interface
1 SATA (3T max)
The network interface
RJ45
Mobile phone watch
Support iPhone, blackberry, Windows Mobile, Android, Symbian
The USB interface
2 USB2.0
Power Supply
12V 5A
