FPV 5.8G 600mW 32CH A/ V Transmitting (TX) Module TS832 RP-SMA, RC832 RP-SMA

THIS IS THE NEW 32-CHANNEL EDITION OF 5.8G 600mW A/ V WIRELESS SYSTEM.

Features:

- 32 channels: Cover A, B, E bands and F band (Airwave band) , 4 bands and all frequencies compactable;

- Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;

- Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;

- Power off memory: Replay the very last frequency band and channel

- Independent video and audio signal outputs

Specifications:

- Video format supported: NTSC/ PAL

- Antenna connection: RP-SMA, jack (module side ) See connector type diagram

- Power input: 7.4-16V (3S Lipo suggested)

- Transmitting power: 600mA

- Antenna gain: 2db

- Working current: 220mA at 12V

- Video bandwidth: 8M

- Audio bandwidth : 6.5M

- Weight: 22g

- Dimension: 54x 32x 10mm (excluding antenna)

*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX.

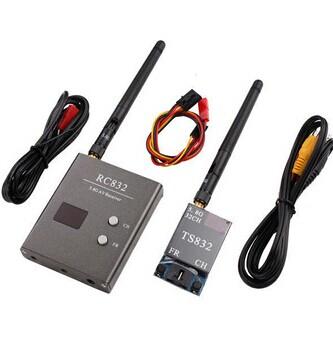

Package Included:

- 1 x TS832 transmitting unit (TX) or Rx RC832 AS SELECTION

&

- 1 x antennas (2db)

- 1 x basic wires set
