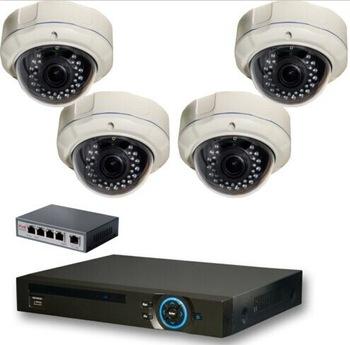

4x 720P 1.3M Camera 8ch NVR 2TB HDD Security Kit-PoE Onvif ISO Android
• H. 264 Main Profile level 3 • HD 1080P (1920*1080) 2.0Megapixel • Dual H. 264 Stream, resolution, frame rate, bit rate adjustable • Build in Motion Detection, Privacy Mask, image snapshot, Title OSD • Image Controls: Brightness, saturation, contrast, hue adjustable • Support RTSP Compatible with AVI Media Player • Onvif Compliant, Support Milestone/ Axxon/ NUUO/ Geovision NVR/ Software • Smart Phone Support: iPhone, iPad, BlackBerry, Windows Mobile, Android • Basic function: Support WEB remote config, OSD, motion detect, alarm input actived to record, snapshot (MJPEG) , CMS, mobile software, MYEYE (multiple devices management system) , SDK Camera Sensor type: 1/2.5' SONY Sensor Progressive Scan • Effective Pixels: 1920 (H) x1080 (V) • Max S/ N Ratio: 39dB • Lens: 4.0mm / F1.2 (4mm, 6mm, 8mm for optional) • Day-night switch mode: Auto, dual IR-Cut filter • IR LED: 30 IR Led, 15m IR Range • Metal material Housing Functions Title OSD: Supports channel name, date, and video stream information overlay; • Privacy Mask: 4 configurable regions • Image Orientation: image flip and mirror • Auto Exposure Control (AEC) ; Auto White Balance (AWB) ; Auto Band Filter (ABF) • Auto Black Level Calibration (ABLC) • Network protocol: TCP/ IP UDP RTP RTSP RTCP HTTP DNS DDNS DHCP FTP NTP PPPOE SMTP UPNP • ONVIF protocols: Support 2.0 version • Remote View: IE 6.0 or later, firefox, chrome • Network Interface: 10/100M BASE-TX, RJ-45 connector • Recording: Recording set up to record by motion trigger, alarm trigger, manual, or schedule Video encoding Video Compression: H. 264 Main Profile; AVI Baseline • Main Stream: HD 1080P (1920*1080) 1-25fps • Video Bitrate: 32Kbps~4Mbps, Supports CBR/ VBR General Specifications Operating Temperature: -20 °C ~ 50 °C (-4 °F ~ 122 °F) • Operating Humidity: 0% -85% RH • Power: DC12V 2.0A • Power Consumption: 9W (MAX) • Weight: 1.2 KG Features of POE Switcher: • Up to 15.4W of Power on • IEEE 802.3af Compliant with 2-event classification • IEEE 802.3af backward compatible • Compatible With All IEEE 802.3af or Legacy • Safe: Low Power Devices Receive Only the Power They Need • Safe and Reliable Power to WLAN Access Points • Automatic Detection and Protection of Non–standard Ethernet Terminals • Supports 10/100 Base-T applications • Compact Design Fits Easily in WLAN Access • Plug-and-Play no configuration required • Internal power supply • Easy installation and maintenance • complies to IEEE 802.3af PoE standard and is backward Specifications • Pass Through Data Rates : 5-Port 10/100 Mbps • LED : Power, 10/100, PoE • Power over Ethernet Output • Pin Assignment and Polarity: Endspan: 1/2 (+) , 3/6 (–) ;Optional Midspan 4/5 (+) ,7/8 (–) • Output Power Voltage: 54Vdc • User Port Power: ) 16Watts / 3~600ma • Total Power: PSE53XX / 35W , PSE56XX/ 65W • Input Power AC Input Voltage: 100 to 240 Vac • AC Frequency: 50 to 60 Hz • Dimensions (W x D x H) : 180 mm x 113 mm x 36mm • Weight : 0.65Kg • CTN SIZE: 450*320*100 (10PCS) 10KG • Indicators: System Indicator: AC Power (Green) • User Indicator: Channel Power • Connectors: Shielded RJ-45, EIA 568A and 568B • Operating Ambient Temperature: -10 to 45°C • Reliability MTBF: 296000 hrs. @25°C • Thermal Rating 27 BTU/ Hr (@240VAC) • Warranty 1-year • Regulatory IEEE 802.3at, IEEE 802.3af. • Compliance RoHS Compliant , CE , FCC • Safety Approvals EN 60950: 2006 Features NVR 8*1080P/ 8*720P/ 16*D1, 30fps 1080P decoding • H. 264 High profile compression algorithm ideal for standalone DVR • Realtime live display up to 4 cameras • Pentaplex function: live, recording, playback, backup & remote access; • Support Dual-streams, to make mobile monitoring very easy, flexible for network transmission • Support smart mobile and network (IE&Firefox&Safari&Chrome) real time remotely monitoring, such as iPhone. Blackberry, Android, Nokia and windows mobile. • Multiple control methods: IR remote controller, USB mouse and front panel press button • Smart video detection: motion detection, video blind, video loss • Smart camera settings: privacy masking, camera lock, color setting, and title display • Pan Tilt Zoom and Speed Dome Control: more than 60 protocols supported, preset, scan, auto pan, auto tour, pattern, auxiliary function supported • Easy backup methods: USB devices, remote network and client software backup • Alarm triggering screen tips, buzzer, PTZ preset, e-mail &FTP upload • Smart HDDs Management: non-working HDD hibernationg, HDD faulty alarm, Raid function • Powerful network software: built-in web server, multi-DVR client &SMS Networking access for remote live viewing, recording playback, setting, system status, event log, e-mail & ftp function • Support DHCP/ PPPOE/ FTP/ DNS/ DDNS/ NTP/ Email alarm/ IP right management/ IP search/ network alarm center functions, support web client, standalone client and SDK. • With the sound system for the protection circuit, unique triple watchdog function, very low power consumption, to ensure the equipment never be hang up. With the unique black box technology, can monitor the whole run process of the equipment, can greatly reduce the maintenance costs. • Enable strong multi-way synchronization with max 1 channels playback, realize the zero-delay between playback channels • Support Onvif • Support XM cloud (xmeye.net) , no need to do router mapping, just 1 step go to internet with XM cloud technology • Arabic, Czech, English, Finnish, Greek, Indonesian, Italian, Japanese, Portuguese, Russian, Thai, T-Chinese, S-Chinese, Turkish, Brazilian, Bulgarian, Farsi, French, German, Hebrew, Hungarian, Polish, Romanian, Spanish, Swedish, Vietnamese
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
