Channel H.264 Audio Video DVR System with 500GB Hard Disk

109.7 USD

Function: 4 channel H. 264 Network Digital Video Recorder System
DVR Specification:
Model: KT7604AD
Main Features:
- H. 264 video compression technology.
- D1, HD1 & CIF resolution recording and playback.
- Multiplex operation.
- Full audio recording, PTZ preset and cruise control.
- Backup with USB, moveable hard disk, network.
- Support 3G module, built-in free DDNS server, easy for setting Internet / Client software / CMS browse.
- Mouse, remote controller and panel operation.
- Mobile phone surveillance (Win CE / Symbian / iPhone / Blackberry) .
- Central management software and Networked system management.
Operating System: Embedded Linux OS
Video:
- Compression Format: Main Profile H. 264
- Input: 4 Channels BNC
- Output: 1 Channel BNC, 1 Channel VGA (1280 x 1024)
Audio Input / Output: 4 Channel RCA / 1 Channel RCA
Alarm Input / Output: 4 channels input, 1 channel output
Display:
- Picture: 1 / 4CH
- Resolution: PAL : D1 (704 x 576) , NTSC : D1 (704 x 480)
Digital Zoom, PIP: Supports
Multiplex Operation: Live display Playback Recording Backup Mobile phone Surveillance Network simultaneously
Recording:
- Mode: Manual Timer Motion Detection Alarm
- Frame Rate: PAL: D1@50fps, HD1@100fps, CIF@200fps; NTSC: D1@60fps, HD1@120fps, CIF@240fps
- Resolution: PAL: D1 (704 x 576) , HD1 (704 x 288) ,CIF (352 x 288) , NTSC: D1 (704 x 480) , HD1 (704 x 240) , CIF (352 x 240)
- Playback: 1 / 4 channel playback simultaneously (Optional playback channel)
- Backup: USB, Moved Hard Disk, USB Writer, Network
- Play: Special player, Support AVI file format conversion
Network Transmission: 4 Channels real-time Network transmission with QCIF resolution
JPEG Capture Function: Support, 3M Pixels@10fps
Email Alarm: Send pieces to the designated email
Support:
- Action with Alarm / SPOT Alarm pop-up / Video Mask Alarm
- Client Software / CMS / Dual Stream / Privacy Mask / Watermark
- Multi-language
- Remote Controller / DST
PTZ:
- Supports PTZ preset, Cruise Control and PC client port setup
- Protocol: PELCO-D, PELCO-P
HDD:
- Support 1 SATA HDD, capacity to 2T
- Remain Time Hint: Support
Network and Protocol: 1 RJ-45 10 / 100M via Ethernet, Support TCP / IP, PPPOE, DHCP, DNS, DDNS, NTP, UPNP
IE Browser: Windows XP / Vista / Win 7 / Mac OS, IE6.0-9.0 / Firefox / Chrome / Opera / Apple Safari
Group Play: At least Support five users online access
S.E.Q: Support single channel and grouping S.E.Q
Mobile Phone Surveillance: Support Windows Symbian iPhone Blackberry Operation System
Mouse / Backup Interface: USB 2.0
Date and Time Format: Adjustable
Power: DC12V / 3A
Working:
- Temperature: 0 - 50 Centigrade
- Humidity: 10 % - 90 %
Color: Black
Size: 273 x 215 x 45mm
Package Size: 312 x 256 x 110mm
Net Weight: 1015g
Hard Disk specification:
- Capacity: 500 GB
- Speed: 7200 RPM
- Interface: SATA / 300
- 16MB buffer
- Average latency: 4.16 msec
Random:
- Read Seek Time: ( 8.5 msec
- Write Seek Time: ( 9.5 msec
Material: Halogen-free for eco-friendly footprint
Up to 18% idle power savings over previous generation product
Net Weight: 405g
Dimension of the HDD: 145mm x 101mm x 20mm
Package Weight: 2160g
Approved: CE / FCC
After Sales Service: 1 Year Warranty

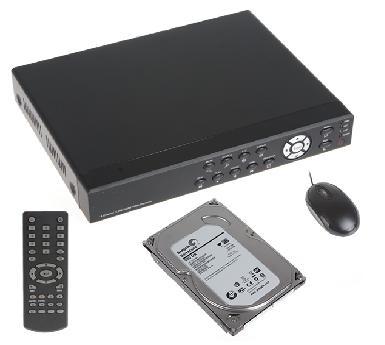

Accessories:
1 x User Manual
1 x Remote Controller
1 x AC Adapter suit your country
1 x CD
4 x Screw
2 x AAA Battery
1 x Mouse
1 x 500GB Hard Disk
