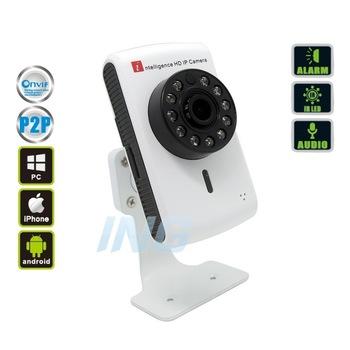

P2P HD 1280x720P Intelligence IP Camera Wireless Network Wifi Dual Stream Security Camera H.264 Night Vision Mini CCTV Camera

32.9 USD

The series IP Camera is designed specially for security and defence field which is an outstanding
digital surveillance product. It introduces embedded LINUX operating system which is more stable. It
introduces standard H. 264mp video compressed format and G. 711A audio compressed format which
insures the high quality image, low error coding ratio and single frame playing. It introduces TCP/ IP
network technology which achieves the strong network communication ability and telecommunication
ability.

The IPC can online applied as a part of a safety surveillance network. With the professional network
video surveillance software it achieves the strong network communication ability and telecommunication
ability. And IPC can individually work also.

It is applied to all kinds of occasion that need network remote monitoring, such as:
# ATM, Bank counter, supermarket, factory, etc.
# Foster care center, kingdom garden, school, etc.
# Intelligent gate control system.
# Intelligent building and residential manage system
# Unattended system like: Generating plant, telecom base station
# Outdoor device to monitor bridge, tunnel, block transportation status
# Production line and warehouse control.
# 24-hour monitor for road transportation.
# Remote monitor for forest, water source and river.
# Airport, train station, bus stop, etc.

Porduct Main Function

Real-time surveillance
` with analog output interface can do surveillance through device of monitor or DVR, etc.
Storage
` Max support TF card with 32G (part of model support) for local storage of snapshot image.
` can do snapshot remote storage via CMS software or myeye platform
` storage data is using dedicated format, can not be modified to make data safty
Compression format
` Audio and video signal is compressed by individual hardware, to make the image and voice
synchronously stable
Backup function
` client side pc can download file from TF card for back up via network
Video playback function
` can do full real-time record, and search, net surveillance, video search and download, etc.
` support play back mode of fast-play, slow-play, etc.
` can do partial enlargement of any of the area
Network operation function
` can remote surveillance via network (including mobile)
` remote video search and realtime playback
Alarm linkage function
` alarm link to record, snapshot, email sending, etc
Intelligent operation
` for the same setting operation on menu can do copy & paste operation.

Specification-Ing

* 1/4' OV9715 MEGAPIXEL CMOS IP camera
* 1.0MP, 1280*720P resolution
* 3.6mm Megapixel lens
* Support IR-cut
* Support two-way audio and dual stream
* Support TF card and network storage
* Support ONVIF protocal
* With Cloud technology
* Support alarm/ WIFI
* 11pcs IR LEDs, IR disatance: 10m
* Support iPhone, Blackberry, Android, Symbian and windows mobile remote monitoring
* Plug and Play (P2P)

Model: ZB-IPD01
Color: Black
Megapixel: 1.0M
Image Sensor: 1/4' OV9715 MEGAPIXEL CMOS
Min .illumination: Color: 0.1Lux@ (F1.2, AGC ON) , O LUX with IR, B/ W: 0.1Lux@ (F1.2, AGC ON) , O LUX with IR
Electronic Shutter: 1/50 (1/60) s~1/ / 100000s
Lens: Megapixel 3.6mm
Day/ Night: Support IR-CUT
Video Compression: H. 264 High profile, JPEG snapshot
Bite Rate: 32kbps~2Mbps
Audio Compression: G. 711a
Max . Image Resolution: 1280 x 720
Image Setting: Saturation, Brightness, Contrast adjustable through client software or web server
Storage: Support TF Card and network storage
Intelligent Alarm: Motion detect, video loss, network disconnect, IP address conflict, storage full, storage error
Protocol: TCP/ IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP (HTTPS, SIP, 802.1x, IPv6 optional)
Basic: Anti-flicker, dual stream, hearbeat, password protection
Audio Input: 1ch Microphone
Audio Output: 1ch 3.5mm, JACK port
Net Interface: 1RJ45 10M/ 100M
Alarm Input: 1ch
Wifi: Support
TF Card: Support
Operating Condition: -10~60 Degrees Celsius, Humidity 90% or less (non-condensing)
Power Supply: DC5V±10%
Power Consumption: 5W MAX
IR Distance: 10meters
