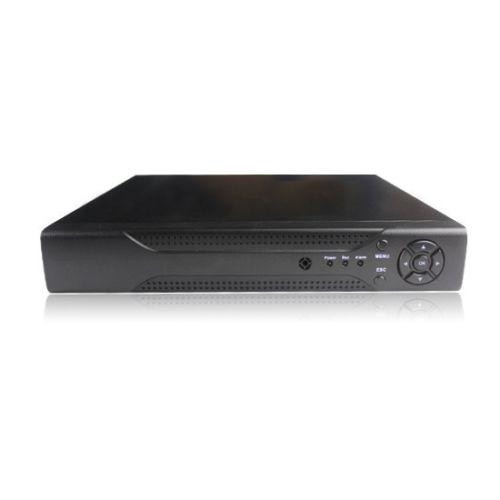

The product CTADVR7804T-EL is a 4 channel, fully integrated, real time, hardware-based digital video recorder based on an embedded Linux operating system and accepts 4 color cameras and 4 channels for audio, and includes a network connection for remote viewing. Records in full D1 (720 x 480 / 120 Fps) resolution. This system includes a remote controller. mouse, VGA video output, software and USB backup and is the perfect solution for any commercial or residential application. This DVR can also be viewed remotely through your smart phone: iPhone, Android or Blackberry. This DVR is featured cloud technology, one step to interenet by adding a S/ N, no need port mapping and DDNS setting.
Features: - 120 fps live REAL TIME
- 120 fps recording/ playback
- 4 Channels Video Input
- 2 Channel Video Output
- 4 Channel Audio Input
- 1 Channel Audio Output
- Windows CMS
- Remote viewing through a Smart Phone Application for iPhone®, BlackBerry®, Windows Mobile®, Android™ Phones
- Simultaneous Live, Recording, Playback, Network, backup
- H-264 Video Compression Format
- Recording Resolution D1 720x480
- Adjustable recording frame rate for each channel
- High speed network transmission with full screen in each camera mode
- NTSC and PAL Automatic Detection
- Powerful searching mode supported (Date, Time & Event)
- Digital Zoom
- BNC Video output and VGA Video output
- Independent Color adjustment of each camera
- Motion Detection Function
- Pan/ Tilt/ Zoom camera control by RS-485 communication port
- Indicating Date/ Time/ unused HDD space on the screen
- 'SATA' Hard Drive Interface
- Real-time live display for all cameras
- On-screen setup menu and system timer
Specification:
|
| Type | CTADVR7804T-EL 4CH | | System | Main processor | High performance embedded microprocessor | | Operation system | Embedded LINUX operation system | | System resource | synchronous multi-channel recording, synchronous multi-channel sub-code stream, synchronous multi-channel playback, synchronous network operation | | Interface | Operation interface | 16 bit true color graphical menu interface, mouse operation supportive | | display | 1/4image display | | Video | Video standard | PAL 625line, 50 f/ s; NTSC 525 line, 60 f/ s | | Surveillance image quality | PAL, D1 (704x576) ;NTSC, D1 (704x480) | | Playback image quality | PAL, D1 (704*576) ;NTSC, D1 (704*480) | | Video compression | H. 264 mp | | Video control | 6 options | | Recording speed | 100/120fps (D1) | | Motion detect | 64 (8*8) detection areas, multiple sensitivity | | Audio | Audio compression | G711A | | Bidrectional Talk | Support | | Record And Playback | Recording mode | manual ) alarm) motion detect) timing | | Playback | Any channels playback, multiple channels playback | | Search mode | Time searching, calendar searching, affair searching, channel searching, information searching | | Storage And backup | Space Occupation | Audio: 28.8MB/ H Video: 25~450MB/ H | | Recording storage | Hard disk, network | | Backup mode | Network, USB flash, USB movable HDD, USB DVD-RW | | Port | Video input | 4 BNC | | Video output | 1 BNC, 1 VGA | | Audio input | 4 RCA | | Audio output | 1 RCA | | Network port | RJ45 10M/ 100M | | PTZ control port | 1 RS485 | | USB port | 2* USB2.0 ports | | Hard disk port | 1 SATA port | | Other | Power supply | 12V/ 2A external power supply | | Power consumption | (15W (without hard disk) | | Working temperature | 0°C~+55°C | | Working humidity | 10%~90% | | Air pressure | 86kpa~106kpa | | Size | 260*200*43mm | | Weight | 2kg (without hard disk) | | Installation | Desktop | What is Included: *(1) PSC DVR System
*(1) Mouse
*(1) Power Supply for DVR
*(1) User's Manual *(1) CD Software China Electronics wholesaler
|
