Features: - With H. 264 High efficiency Video Compression
- Support 1ch playback
- With unique time screen in front of the panel, and displays recorder.
- Support Symbian S60V3/ V5, Windows Mobile, Iphone, Android, , Blackberry and so on.
- Support 4*HDD ( 3TB) , with 2*USB2.0 for backup, burning, upgrading operation
- Stronger network service. support IE browse and CMS software
- Support Chinese, Russian, English, Italian, Portuguese, Spanish, French, German . . . 30 language
- Build-in 3322. org, dyndns. net, oray. net and myq-see. com free DDNS dynamic domain name
- Built-in own free DDNS Domain
- With HDMI, Support 1080P high-definition (1920 * 1080P)
- With ONVIF protocol, can connect the ONVIF IP camera directly, also can by IE and CMS.
- Support P2P cloud functions

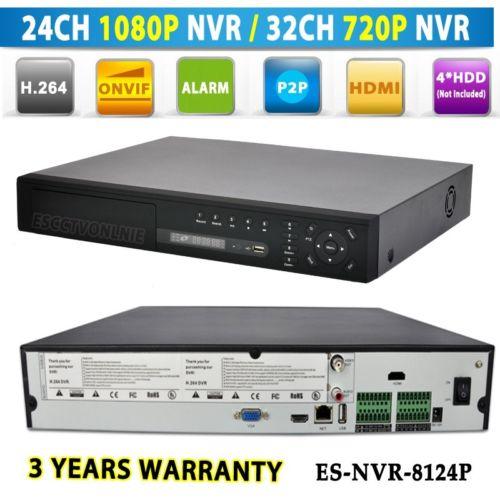

Produce Parameters: | Model | NVR-8124P | | Mainprocessor | HI3531 chip | | Screen display | 1/4/9/16/24 Windows | | Video standar | PAL (625TVL, 50 Fields / sec.) ; NTSC (525TVL, 60 Fields / sec.) | | Video quality | Monitor: D1; VGA: HD; HDMI: HD | | Coding capacity | 1080P/ 720P/ 960H/ D1/ HD1/ CIF/ QCIF | | Digital input | 32ch 720P / 24ch 1080P | | Motion Detection | Each screen can be set to 192 (16 * 12) detection area; multi-level sensitivity can be set | | Video mode | Manual) Alarm) Motion detection) timing | | Local Playback | Single | | Video inquiry | Point-in-time retrieval, calendar search, event search, channel search | | Space | CIF: 5G / day / channel D1: 20G / day / channel 720P: 40G / day / channel 1080P: 80 G/ day/ channel | | Video save | HDD. Network | | Backup mode | Network backup / USB mobile HDD / USB Burner / DVD CD burning | | Video input | 16CH BNC Input | | Video output | 1ch BNC output / 1ch SPOT output / 1ch VGA output / 1ch HDMI output (1920*1080P) | | Audio input | 1ch RCA | | Audio output | 1ch RCA | | Alarm input | 16ch alarm input | | Alarm output | 4ch alarm output | | Network interface | RJ4510M/ 100M/ 1000M | | PTZ control | One RS485 ptz control interface | | USB interface | 2*USB interface | | HDD | Support 4* SATA (3TB) (NOT Included) | | Power supply | 12V/ 8A external power supply | | Size | 430 (width) x380 (deepth) x65 (hight) mm | | weight | 7kg (not including HDD) |
Package Included: 1x 32CH 720P / 24CH 1080P NVR China Electronics wholesaler
|
