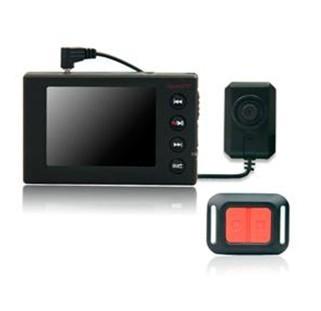

DVR Recorder and CMOS Camera with 2.5inch TFT LCD
Features:
• Interline CMOS image sensor
• Image size: Diagonal 6mm (Type 1/3)
• Number of effective pixels: 500 (H) * 582 (V) approx. 290K pixels
• Total number of pixels: 537 (H) * 597 (V) approx. 320K pixels
• Chip size: 5.59mm (H) * 4.68mm (V)
• Unit cell size: 9.8μm (H) * 6.3μm (V)
• Optical black: Horizontal (H) direction : Front 7 pixels, rear 30 pixels
Vertical (V) direction : Front 14 pixels, rear 1 pixel
• Number of dummy bits: Horizontal 16
Vertical 1 (even fields only)
Specifications:

HKA-MR0011
LCD: 2.5inch TFT LCD 960*240
Video system: PAL/ NTSC
Video resolution:
Frame rate: D1 720*576@25 fps D1 720*480@30 fps VGA 640*480@30fps QVGA 320*240@30fps
Video format: AVI (MPEG-4)
Audio format: MP3
Built-in flash memory: 128MB~2G (optional)
Memory compatibility: Micro SD Card 256MB~16GB
USB Jack: High-speed USB 2.0
AV In Jack: 3 rings with 2.5mm
AV Output Jack: 3 rings with 2.5mm
Language: Chinese/ English
Operation Temperature: -0ºC-60ºC
Operation Humidity: 15-85%RH
Power supply: DC 5V 1000mAh
Battery: Li-ion battery 1300mAh
OS supported: 2000/ XP/ Vista 32
Camera
Imaging sensor type: 1/3'Color CMOS / CCD (Optional)
TV System: PAL/ NTSC (optional)
Horizontal definition: 420 TV Lines
Minimum Illumination: 1 LUX
Dimensions: 21*13*34 mm
Power supply: DC 5V 150MA
