VGA Extenter
bargain
add to cartProduct Details
Basic Info.
Export Markets: Global
Product Description

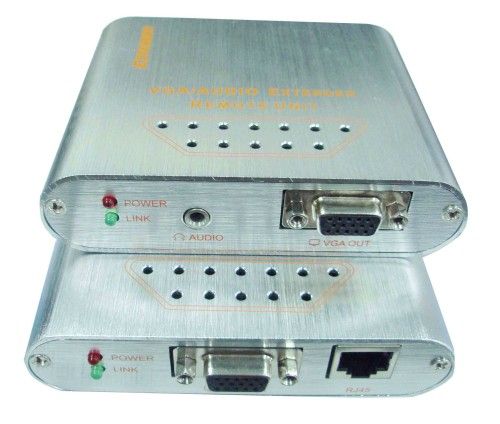

VGA video & audio Extender CV-VEX1200 series
1. The transmitter is connected with the PC/ VGA splitter, VGA/ Audio interfaces or something like that with a VGA cable.
2. The remote receiver is connected to the monitors.
3. The transmitter and receiver are connected with a UTP cable up to 300m.
1. The transmitter is connected with the PC/ VGA splitter, VGA/ Audio interfaces or something like that with a VGA cable.
2. The remote receiver is connected to the monitors.
3. The transmitter and receiver are connected with a UTP cable up to 300m.
| Item No. | CV-VE X 1215/ A | CV-VE X 1220/ A | CV-VE X 1230/ A |
| Transmission Distance | 150m | 200m | 300m |
| Interfaces Type | HDB15, RJ45 | ||
| UTP Type | CAT5, CAT5e, CAT6, CAT6e, CAT7 | ||
| Resolution | 640*480 ~ 1920*1440 | ||
| Differential Gain | ( 0.05% | ||
| Differential Phase | ( 0.05o | ||
| SNR (weighting ) | 90dB | ||
| Max. Bandwidth | 350m | ||
| Input Impedance | VGA video 75Ω , VGA synchronism 4.7KΩ | ||
| Input Level | VGA video 0.7Vpp, VGA synchronism TTL | ||
| Working Temperature | -25C~ +75C | ||
| Relative Humidity | 0~95% (Non-condensing) | ||
| Operation System | DOS, Windows, NT, Linux | ||
| Power | DC7.5V / 1mA for CV-VEX1215/1220, AC7.5V / 1mA for CV-VEX1230 | ||
| Size | 105mm*86mm*23mm | ||
| Weight | 850g | ||
| Parts in the package | 1pc* local transmitter; 1pc* remote receiver; 2pcs*DC 7.5V power adaptors for CV-VEX1215/1220A 2pcs*AC 7.5V power adaptors for CV-VEX1230/ A 1pc* VGA cable 1pc* screw driver (for CV-VEX1220 only) ; 1pc* manual/ quality warranty sheet 1pc* Audio cable | ||
