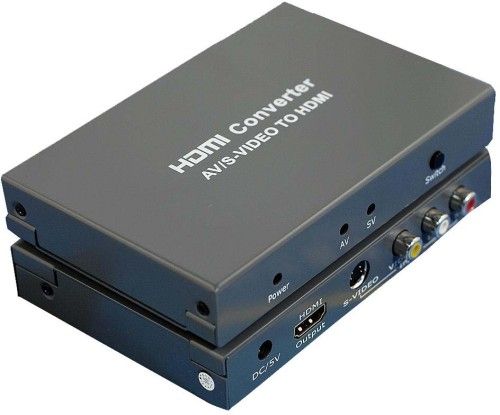

AV+S-Video to HDMI Converter (CV-AVHD001)
bargain
add to cartProduct Details
Basic Info.
Model NO.: CV-AVHD001
Application: TV
Color: Black
Type: Coaxial
Connector: HDMI
Certification: CE
Export Markets: Global
Product Description
FEATURES:
*One s-video signal input
*One AV Signal input
*R/ L audio signal input
*One HDMI Signal output
*HDMI signal 720p/ 60Hz output
*Adaptive PAL / NTSC standard.
*Status LED Light-when signal source or signal end is working, the related LED light will go bright.
*Support output up to 20metres AWG26 cable length
*Inputs can be switched by button.
*No loss of quality
*Installs in minutes
*Need DC5V/ 1A power supply
*One s-video signal input
*One AV Signal input
*R/ L audio signal input
*One HDMI Signal output
*HDMI signal 720p/ 60Hz output
*Adaptive PAL / NTSC standard.
*Status LED Light-when signal source or signal end is working, the related LED light will go bright.
*Support output up to 20metres AWG26 cable length
*Inputs can be switched by button.
*No loss of quality
*Installs in minutes
*Need DC5V/ 1A power supply
| Model No. | CV-AVHD001 |
| Input Signal Support | CVBS and AV |
| Audio Input Support | R/ L Analog |
| Support HDMI output | 720P/ 60Hz |
| CVBS Signal input | 0.5~1.0Volts p-p 75ohm |
| S-Video Y/ C Signal input | 0.5~1.0Volts p-p 75ohm |
| AUDIO (R/ L) | 0.5~3 Volts p-p 47ohm |
| Output DDC signal | 5Volts p-p (TTL) |
| Output Cable Length | ≤ 20m, use the 26AWG HDMI Cable |
| Power adapter format | Input: AC (50HZ, 60HZ) 100V-240V; |
| Output: DC5V/ 1A | |
| Working Temperature | -15 to +55C |
| WorkingMoisture Range | 5 to 90%RH (No Condensation) |
| Dimension (L x W x H) | 134X89X22 (mm) |
| Weight | 325g |
