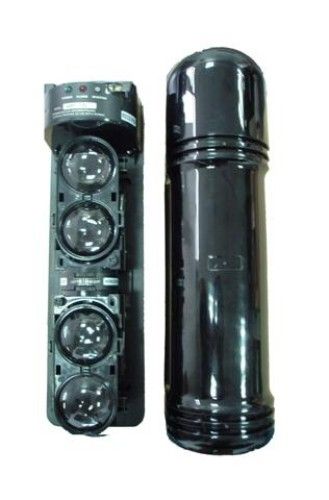

Photoelectronic Twin Beam Detector for Burglar Alarm System (CV-PBQ-XX)
bargain
add to cartProduct Details
Basic Info.
Model NO.: CV-PBQ-XX
Export Markets: Global
Product Description
Photoelectronic Twin Beam Detector For Burglar Alarm System (CV-PBQ-XX)
1) Quad Beam Detector
2) Response Speed: 50-700msec
3) Waterproof for Outdoor Use
1) Quad Beam Detector
2) Response Speed: 50-700msec
3) Waterproof for Outdoor Use
| Model | PBQ-50A | PBQ-100A | PBQ-150A | PBQ-200A | PBQ-250A | PBQ-300A | |
| Alert Distance | outdoor | 50m | 100m | 150m | 200m | 250m | 300m |
| indoor | 150m | 300m | 450m | 600m | 750m | 900m | |
| No. of beams | 4 beams | ||||||
| Detection mode | 4 beams blocked simultaneous | ||||||
| Optical source | Infrared digital pulse beam | ||||||
| Respond speed | 35 ~700msec | ||||||
| Alarm output | Relay contact output: NO. NC contact rating: AC/ DC30V 0.5AMax | ||||||
| Power supply | DC13.8 ~18V AC11~18V P≥ 15W | ||||||
| Power consumption | 95mAmax | 100mAmax | 100mAmax | 100mAmax | 105mAmax | 105mAmax | |
| Operation temperature | -25~55º C 5%-95%RH (relative humidity) | ||||||
| Dimension | Refer to its diagram | ||||||
| Tamper output | Contact output: NC, contact rating DC24V 0.5Amax | ||||||
| Optical axis adjustment (H) | ± 180° (± 90° ) | ||||||
| Optical axis adjustment (H) | 20° ( ± 10° ) | ||||||
| Protection against dew frost | Calefaction housing (optional) | ||||||
| Material | PC resin | ||||||
| Net weight | 2000g (Receiver+Transmitter) | ||||||
| Gross | 2500g | ||||||
