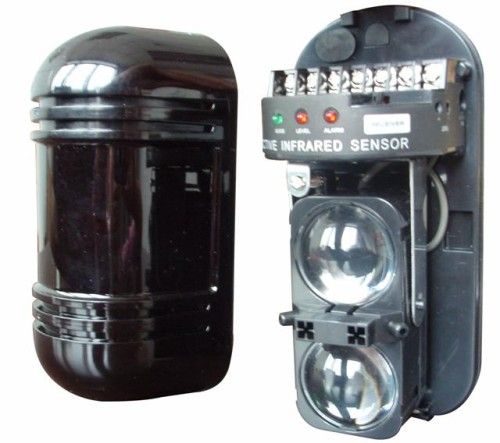

Photoelectronic Twin Beam Detector for Burglar Alarm System (CV-PBD-XX)
bargain
add to cartProduct Details
Basic Info.
Model NO.: CV-PBD-XX
Export Markets: Global
Product Description
Photoelectronic Twin Beam Detector For Burglar Alarm System (CV-PBD-XX)
1) Dual Beam Detector
2) Respond Speed: 50~700 msec
3) Waterproof for outdoor usage
1) Dual Beam Detector
2) Respond Speed: 50~700 msec
3) Waterproof for outdoor usage
| Model | PBD-20 | PBD-30 | PBD-40 | PBD-60 | PBD-80 | PBD-100 | |
| Alert Distance | outdoor | 20m | 30m | 40m | 60m | 80m | 100m |
| indoor | 60m | 60m | 120m | 180m | 240m | 300m | |
| 200m | 350m | 450m | 650m | 900m | 1100m | ||
| No. of beams | 2 beams | ||||||
| Detection mode | 2 beams blocked simultaneous | ||||||
| Optical source | Infrared digital pulse beam | ||||||
| Respond speed | 50 ~700msec | ||||||
| Alarm output | Relay contact output: NO. NC contact rating: AC/ DC30V 0.5AMax | ||||||
| Power supply | DC13.8 ~24V AC11~18V P≥ 15W | ||||||
| Power consumption | 40mAmax | 40mAmax | 55mAmax | 55mAmax | 65mAmax | 65mAmax | |
| Operation temperature | -25º C~55º C 5%-95%RH (relative humidity) | ||||||
| Dimension | Refer to its diagram | ||||||
| Tamper output | Contact output: NC contact rating DC24V 0.5Amax | ||||||
| Optical axis adjustment (H) | ± 180° (± 90° ) | ||||||
| Optical axis adjustment (H) | 20° (± 10° ) | ||||||
| Protection against dew frost | Calefaction housing (optional) | ||||||
| Material | PC resin | ||||||
| Net weight | 658g (Receiver+Transmitter) | ||||||
| Gross | 1150g | ||||||
