Photoelectronic Twin Beam Detector for Burglar Alarm System (CV-PBT-XX)

Photoelectronic Twin Beam Detector for Burglar Alarm System (CV-PBT-XX)

bargain

Product Details

Basic Info.

Model NO.: CV-PBT-XX

Export Markets: Global

Product Description

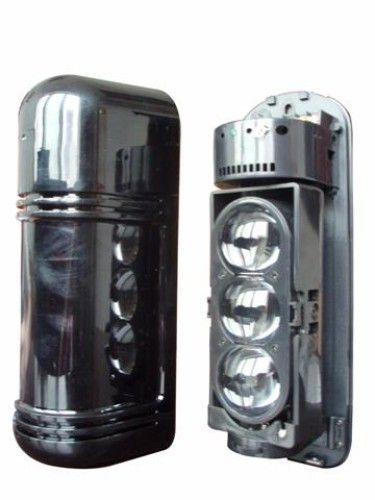

Photoelectronic Twin Beam Detector For Burglar Alarm System (CV-PBT-XX)
1) Triple Beam Detector
2) Response Speed: 50-700 msec
3) Wateproof for outdoor usage

Model		PBT-50	PBT-100	PBT-150	PBT-200	PBT-250
Alert Distance	outdoor	50m	100m	150m	200m	250m
	indoor	150m	300m	450m	600m	750m
No. of beams		3 beams
Detection mode		3 beams blocked simultaneous
Optical source		Infrared digital pulse beam
Respond speed		50 ~700msec
Alarm output		Relay contact output: NO. NC contact rating: AC/ DC30V 0.5AMax
Power supply		DC13.8 ~18V P≥ 15W
Power consumption		70mAmax	80mAmax	90mAmax	100mAmax
Operation temperature		-25º C~55º C 5%-95%RH (relative humidity)
Dimension		Refer to its diagram
Tamper output		Contact output: NC contact rating DC24V 0.5Amax
Optical axis adjustment (H)		± 180° (± 90° )
Optical axis adjustment (H)		20° ( ± 10° ) )
Protection against dew frost		Calefaction housing (optional)
Material		PC resin
Net weight		1250g (Receiver+Transmitter)
Gross		2168g
