Wholesale 5 in and 1 out HDMI auto switcher

9.45 USD

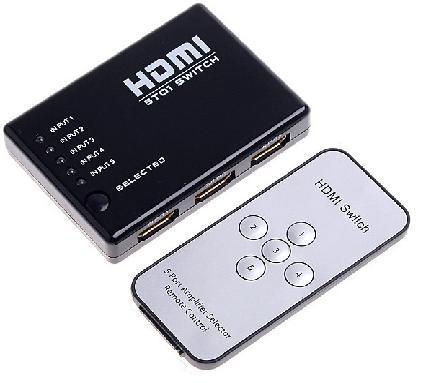

5 in and 1 out HDMI auto switcher
HDMI Auto Switcher (IR Learning Function)
Introduction
This is the final edition of high performance mini HDMI Amplifier Swit
cher.
This kind of HDMI mini switcher not only has the key-press-switchin
g function, but also has the intelligent function.
This kind of HDMI Amplifier mini Switcher routes high definition video (in
multiple resolutions up to 1080p) and digital audio from any one of the
several sources to display units.
All inputs accommodate the connections of the high definition video
sources simultaneously, compatible well for HD-DVD, SKY-STB, PS3, Xbo
x36etc. The output sends the high definition audio/ video signals to a hig
h definition display.
5 in and 1 out HDMI auto switcher Features
This MiNi HDMI Amplifier Switcher has many features that enable it to p
erform in a superior manner. Among those features you will find:
(1) Support 12-bit Deep Color, full 1080p
(2) Multifunctional on switching : intelligent or mechanical
(3) Supports with HDMI1.3b.
(4) High performance up to 2.5Gbps
(5) Supports 25Meters HDMI Cable on both ends of the Switcher
(6) Maintains high resolution video - beautiful, sharp HDTV resolutions
up to 1080p, 2k, 1440p graphics and computer resolutions up to 1920 x
1200 are easily achieved
(7) The product has another advantage, infrared function for learning. The
customer can use this by setting the remote control simply at home. This is
the first model of amputator which has learning function.
5 in and 1 out HDMI auto switcher SPECIFICATIONS
Signal Inputs/ Output
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Maximum Single Link Range 1920X1200, 1080P
Output Video HDMI1.3b+HDCP1.0/1.1
Video format supported
VGA 640x480800x6001024x7681920x1200
DTV/ HDTV 480i/ 576i/ 480p/ 576p/ 720p/ 1080i/ 1080
P
Digital Signal I/ O
HDMI Compliance HDMI 1.3b
Operating Frequency
Frequency Up to250MHz
Vertical Frequency Range 60Hz
Video Amplifier Bandwidth 2.5Gpbs/ 250MHz
Resolutions (HDTV)
Interlaced (50&60Hz) 480i, 576i, 1080i
Progressive (50&60Hz) 480p, 576p, 720p, 1080p
Mechanical
Size (H-W-D)
Weight (Net)
Warranty
Limited Warranty 1 Year Parts and Labor
5 in and 1 out HDMI auto switcher Environmental
Operating Temperature 0℃to +70℃
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10℃to +80℃
Storage Humidity 5% to 90 % RH (no condensation)
Power Requirement No power needed
5 in and 1 out HDMI auto switcherAccessories Adapter
User Manual English Version
Note: Specifications are subject to change without notice.
