HD DVB-T2 digitalterrestrial receive

Feature :

Audio decoder: AAC/ HE-AAC/ AC3, DD+ (Optional) /PCM Compliant
Full HD and HDMI 1.3/ HDCP 1.1 Copy protection
DVB Subtiling-ETSI 300473 Compliant, and support VBI/ OSD Teletext
EPG (Electronic Program Guide) with now & next and 7 days events ready
Channel search with automatic/ manual scan
Parental lock function for menu and selectable per channel
Multi-lingual support on screen menu (OSD)
Edit functions for TV or Radio programme name
Signal strength bar for digital transponders
8 Timers for recording and/ or sleep-timer with 3 modes (daily, weekly, once)
PVR/ Multimedia Playback/ Software Update via USB
Support Logic Channel Number (LCN)

Tuner
IF input frequency: VHF: 174MHz - 230MHz/ UHF: 474MHz - 860MHz
Bandwith: 6/7/8MHz
Input level: -83dBm ~ -5dBm
Signal input: IEC-type female
Chipset: MSTAR 7816

Mpeg transport stream and A/ V decoding
Video standard: MPEG-2/ MPEG-4 AVC/ H. 264HP@L4, AVC
SCART video model CVBS/ RGB
Aspect ratio: 4: 3 LB, 4: 3 PS, 16: 9, AUTO
Video resolution: 576i, 576p, 720p and 1080i, 1080p
Audio standard: ISO/ IEC 14.496-3, AC3, AAC, AAC+
Audio mode: mono, dual-channel, stereo
Multimedia format:
Picture: JPEG, BMP, PNG
Audio: WMA.MP3. AC3. AAC (.wma.mp3. m4a)
Video: MPEG1. MPEG2. MPEG4. H264. Motion JPEG (.avi..mpg..dat.vob..div..mov..mkv.)
Front panel
Display LED display
USB slot for software upgrading/ PVR/ multimedia playback

Channel decoding
Standard: DVB-T2
Demodulation: QPSK, 16QAM, 64QAM
FEC: 1/2, 2/3, 3/4, 5/6, 7/8, automatic
Guard: 1/41/81/161/32
Mode: 2K, 8K

Demultiplexer
Standard ISO/ IEC 13818-1; ARIB STB-B10
Input max. bit stream rate: 120Mbps (serial) /15MBps (parallel)

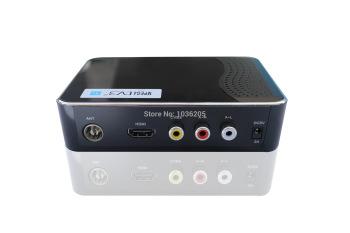

Rear panel output

HDMI output (576P/ 720P/ 1080P/ AUTO)
Loop through output: IEC-type, connector, single tuner
TV Scart, USB 2.0
CVBS L/ R Audio
L/ R audio RCAX2
Digital Coaxial Audio

* CE, RoHS and EUP 2010 compliance
