P31 Wireless GSM SMS TEXT Touch Keypad Home House Alarm System Emergency Panic 850/900/1800/1900MHz

Main Function Description

You can set more sensors in this alrm system, when the system under ARM status, if someone or something triggered the sensors to activate the alarm system, the siren will sound and the control panel will call and send SMS to the pre-store numbers. You also can long-distance control the alarm panel ARM/ DISARM. You can dial out from the control panel just like mobile phone.

Feature

Elegant and advanced touch keypad for easy operation

128 x 64 lattice LCD screen with clock display

4 wired and 10 wireless defense zones; each wireless zone supports maximum 10 sensors (total 100 wireless sensors)

Support maximum 8 remote controllers

Built-in high-volume speaker, and artificial intelligent digital voice announcer

Built-in artificial intelligent English message

10-second automatic voice message recording

Can preset 6 phone numbers: when alrming, system will make audio call to these numbers automatically

Can preset 3 SMS numbers: when alarming, system will send SMS

Timely arm and disarm

Can be used as a wireless telephone by using keypad to make calls

One-key-control: out arm, home arm, arm by remote controller or phone call

SOS, fire, gas door, hall, window, balcony, and boundary places alarm

Real-time, delay, 24 hours, bypass defense zones programming function

Wireless learning code: easy to add additional wirelss accessories

Remote control the device to arm, disarm, monitor, and intercom by phone

Recod checking: the device can store 30 alarm records

Different arm status: out arm, home arm, delay arm and timely arm

Arm by different ways: panel keypad, remote controller, remote call

Alarm call has the priority: even when the number of the device is busy

Built-in LI battery: automatically recharge.

Four Bands GSM module (850/900/1800/1900MHz) , Can be used all over the world

GSM Touch Keypad Control Panel

Input Voltage: DC12V/ 1.2A

Standby Current: (55mA

Alarming Current: (450mA

Wireless Frequency: 433MHz

GSM Frequency: 850/900/1800/1900MHz

Wireless Sensors: can support Max. 100 wireless sensors

Remote Controllers: can support Max. 8 wireless remotes

Wired Sensor: can support Max. 4 wired sensors

Back-up Battery: can last 4 hours when power cut off

Siren: default one wired little siren in the package

Wireless Gap Detector (Door / Window Contact)

Power Supply: DC12V/ 23A Battery

Static Current: ≤20 mA

Transmission Current: ≤15Ma

Transmission Frequency: 433MHZ 0.5MHZ

Transmission Distance: About 30m with one barrier

Internal Distance: 15 mm

Humidity: ≤ 90%rh

Battery Life Time: About 6 months

Wireless P. I. R Motion Detector

Power Supply: DC9V (6F22 battery)

Transmission Current: ≤20mA

Static Current: ≤10mA

Wireless Frequency: 433MHZ 0.5MHZ

Transmission Distance: About 30m with one barrier

Detective Speed: 0.3 - 3m/ s

Detective Distance: 5 - 12m

Detective Range: Horizontal 110 Vertical 60

Battery Life Time: About 6 months

Humidity: ≤ 90 rh

Remote Controller (Keyfobs)

Power Supply: 23A12V Battery

Static Current: 0

Emission Current: ≤15 mA

Transmission Frequency: 433MHZ 0.5MHZ

Emission Speed: ≤1 second

Emission Distance: About 30 meters

Humidity: ≤ 90 rh

Battery Life Time: About 6 months

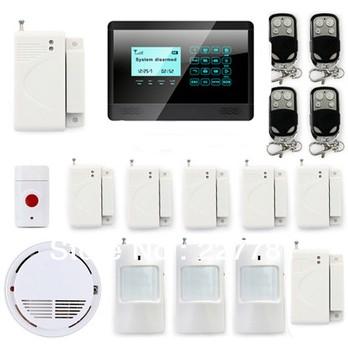

Package Content

1 x Wireless Touch Keypad Control Unit

3 x Wireless PIR Motion Sensor

7 x Wireless Door Sensor

4 x Wireless Remote Controller

1 x Wireless Panic Button

1 x Wireless Smoke Sensor

1 x Wired Siren

1 x User Manual
