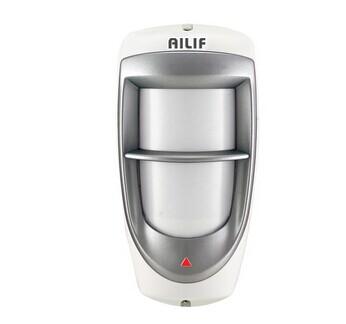

wholesale PIR Detector\Outdoor Waterproof Detector

24.59 USD

•PIR intrusion detector integrating the most advanced security technology.

•It adopts 2 dual PIR sensors with high accuracy, intelligent digi-tal chip, make an accurate judgment of trueintruder or other interference that can cause wrong alarm.

•And it is with function of automatic memory of environmental change.

•It can prevent effectively the interference cause by a 25 kg past or 10 cats, insect, mouse, birds etc. Its super filter can be used indoor and outdoor.

•DG-85 has two different working modes: bus mode and relay mode, can be used for all kinds of control panels on the market.

Parameter:

Input Voltage	9-16VDC
Working Current	30mA 12VDC
Detection Range	11.6m*11.6m
Alarm output	NC.) 100mA/ 28VDC
Anti white light resistance	) 20000LUX
Installation height	2m-2.7m
Tamper switch	NC. 100mA/ 28VDC
Tripping Indication	lndicator lights for about 10-30 seconds
Anti -EMI/ RFI	10V/ m 10MHz-1000MHz
Motion test	0.2m/ s-3.5m/ s (0.6ft-11ft)
Humidity	5%-95% RH
Working Temperature	-10 C to 50 C (14 F to 122 F )
Storage Temperature	-20 ℃ to 60 ℃ (-4 F to 40 F)
Size (HWD)	1768569mm
