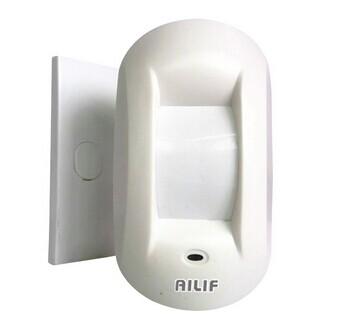

wholesale PIR Detector\Curtain Style Detector

wholesale PIR Detector\Curtain Style Detector

6.55 USD

add to cart
•Adopting MCU control
•Auto temperature compensation
•Resisting white light strength) 6500LUX
•Alarm output: NC/ NO optional
•LED ON/ OFF optional
•Adopt SMT design, enhance the ability of diamagnetic
Parameter:

Working voltage DC10V~16V
Working current ≤20mA (DC12V)
Detection distance 6m/ 11m optional
Detection angle 15 degree
Mounting wall mounted
Mounting height 1.8m~2.5m ( suggest: 2m )
Type of sensor dual low noise pyroelectric infrared sensor
Operating temperature -10℃~+50℃ (14℉ to 122℉)
Environment humidity ≤95%RH (no condensation)
Alarm switch electromagnetic relay or solid state optronics relay optional
Alarm output NC/ NO optional, contact capacity: 28VDC, 100mA
Anti-dismantle switch normal close, no voltage output Contact capacity: 28VDC, 100mA
Demension 94mm*49mm*35mm
