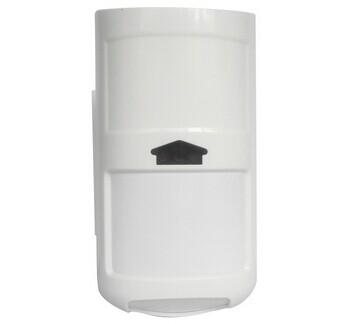

wholesale Microwave and PIR Detector\Alarm System

13.11 USD

•Adopting MCU control
•Adopting doppler effect +energy analysis
•Microwave adopting X-Band plane antenna
•Microwave detecting range is adjustable
•Auto temperature compensation function
•Anti white light strength) 6500LUX
•LED ON/ OFF optional
•Pulse counting 1P/ 2P optional
•Alarm trigger mode AND/ OR optional
•Alarm output mode NC/ NO optional
•Adopting SMT design, superhigh ability of diamagnetism

Parameter:

Working voltage	DC10V~16V
Working current	≤35mA (DC12V)
Detection distance	12m
Detection angle	100 degree
Mounting	wall mounted
Mounting height	suggest 2.2m
Detection mode	doppler effect+ energy analysis
Type of sensor	dual low noise pyroelectric infrared sensor
Operating temperature	-10℃~+50℃ (14℉ to 122℉)
Environment humidity	≤95%RH (no condensation)
LED indicating	green is infrared; yellow is microwave; red is alarm
Alarm output	NC/ NO optional Contact capacity: 28VDC, 100mA
Anti-tamper switch	NC, no voltage output
Product Size	135mm66mm64mm
Carton Size	495450360
Packing	75 PCS/ Carton Gift Box
