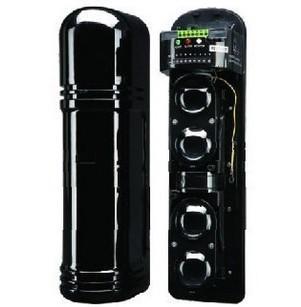

Wholesale 50M YiLiFu infrared correlation

37.62 USD

Anti glare of 50000 LUX, built-in automatic adjust light filtering system, avoid being influenced by strong light or car lights
Mixer fully sealed rain (fog) , dust (worm) such as all-weather integration structure design can make it work in the harsh environment
Pieces when subjected to a heavy fog or bad weather detector will automatically enhance sensitivity (AGC) circuit
In pieces and optical lenses and adjust the mechanical design, make faster, more convenient, more accurate adjustment.
Pieces of modular design is convenient for the probe to add and cascade
Mixer horizontal/ vertical optical Angle adjustment is convenient, easy to calibration
Built-in optical sights, easy to debug
Pieces of precision optical focusing lens and bus control technology
Pieces with a high level of RFI/ EMI resistance
Unique pieces of digital filter circuit design
Mixer photosensitive margin of 99%
Mixer lightning protection circuit design
In pieces with cover design
In pieces form C relay output
Mixer is adjustable to make it more flexible beam interrupt cycle stronger adaptability
Professional anti-interference optical cover in pieces
Pieces of high-power infrared receiving of tube, low power consumption digital frequency conversion processing technology
Technical parameters:
Model ABH - 50 ABH ABH ABH ABH - 100-100-100-250
Detection range (outdoor) 50 m 100 m 150 m 200 m 150 m
Detection range (indoor) 60 m 90 m 120 m 180 m 240 m 180 m
The beam number 4
Light source, infrared digital pulse type
Induction speed 50-700 ms
Alarm output (normal) and normally closed normally open (NC&NO) AV junction capacity/ DC 30 v / 0.5 mA
Working voltage 13.8-24 v DC; 11 to 18 v AC
Working current 40 ma ma 55 55 65 ma, ma ma, ma, 65
Using temperature 25 ℃ to 65 ℃
Use the humidity 5% - 5% (RH)
5 m or higher visibility
Tamper output normally closed (NC) contact capacity AV/ DC 24 v / 0.5 mA
Horizontal Angle adjusting 180 ° (+ 180 °)
Vertical Angle adjustment + 10 °
The shell material PC in Germany
