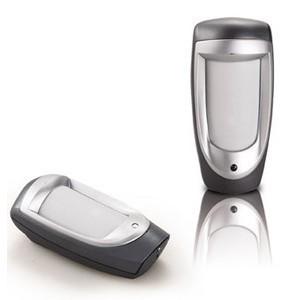

Wholesale Outdoor cable infrared detector DG85

19.22 USD

PIR Sensor, Dual Passive Infrared& Microwave +Artificial Intelligence Detector
PIR detector, PIR sensor, Dual Passive Infrared& Microwave +Artificial Intelligence Detector

1. Dual PIR + microwave + artificial intelligence, complex detection performance become more stable and reliable.
2. Microwave adaptiv adjustment, multi-applications of technology, with a variety of alarm self-analysis capabilities.
3. Self-developed DSP chip with the accumulation of energy, to improve detection sensitivity.
4. Anti-condensation, vibration sensor, with environmental adaptation and self-protection function.
5. Imported optical filter, stray light off of 99%, special lenses of anti-UV (ultraviolet) , reduce the false alarm rate to the extreme.
6. Significant anti-small animals function, can prevent the pet below 25 kg.
7. Fully enclosed design, three layers waterproof
8. Macromolecule coating shell, indoor and outdoor can use

Perameter:

Model: DG-85
Detection range: 12M * 12M
Detection angle: 110 °
Infrared region: (11 +11 +9) * 2 = 62
Microwave frequency: 10.525GHz
Installation: Wall-mounted
Voltage: 9 ~ 16VDC
Current: 30MA 12VDC
Working environment temperature -10 -50 degree celsius
Anti-white light: ) 10000LUX
Anti-electromagnetic interference: 10V / m (10MHz-100MHz)
Anti-pet: 25KG
Alarm Output: Solid Relay, NC/ NO, 150mA/ 30V
Dimensions: 176X83X66mm
